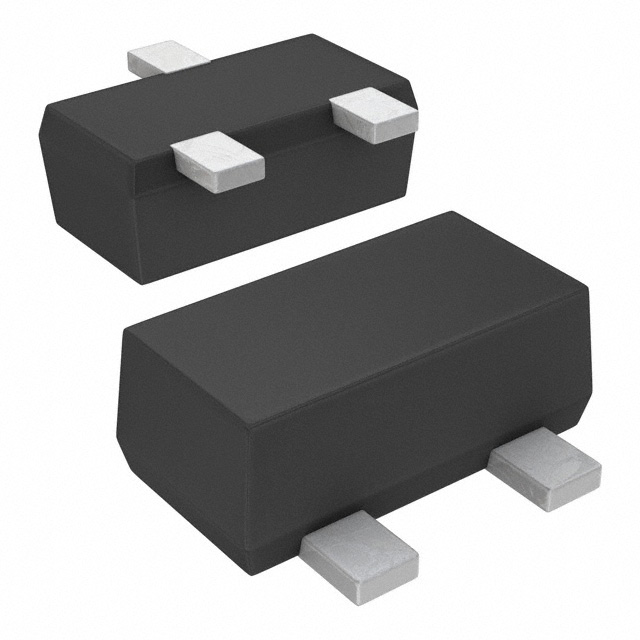

BC847BT TR PBFREE

Central Semiconductor Corp

TRANS NPN 45V 0.1A SOT-523

Search across all available documentation for this part.

Central Semiconductor Corp

TRANS NPN 45V 0.1A SOT-523

Technical Specifications

Parameters and characteristics for this part

Specification	BC847BT TR PBFREE

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	15 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	200
Frequency - Transition	100 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	SC-89, SOT-490
Power - Max [Max]	250 mW
Supplier Device Package	SOT-523
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	400 mV
Voltage - Collector Emitter Breakdown (Max)	45 V

Part	Vce Saturation (Max) @ Ib, Ic	Transistor Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Transition	Package / Case	Voltage - Collector Emitter Breakdown (Max)	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Mounting Type	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Current - Collector (Ic) (Max) [Max]
Central Semiconductor Corp BC847BT TR PBFREE	400 mV	NPN	150 °C	-65 °C	100 MHz	SC-89 SOT-490	45 V	200	Surface Mount	250 mW	15 nA	SOT-523	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor NPN 45 V 100 mA 100MHz 250 mW Surface Mount SOT-523
