YB16MKW01

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

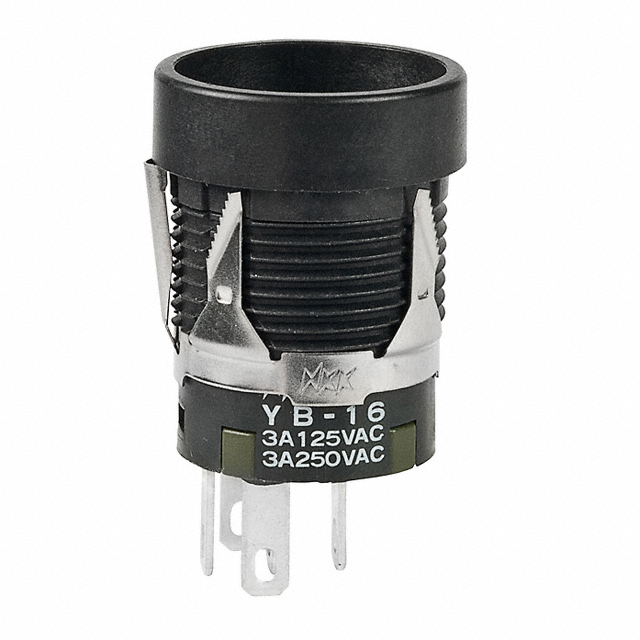

YB16MKW01

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB16MKW01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Tactile Feedback
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB16MK Series

Part	Mounting Type	Illumination Voltage (Nominal)	Actuator Type	Features	Current Rating (Amps)	Actuator Marking	Circuit	Termination Style	Termination Style	Termination Style	Electrical Life	Mechanical Life	Switch Function	Type	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Illumination Type, Color	Voltage Rating - AC
NKK Switches YB16MKW01-2CF02-JB	Panel Mount Snap-In	2.1 VDC	Button Round	Tactile Feedback	3 A	No Marking	SPDT	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	200000 Cycles	On-On	Illuminated Standard	Clear	16 mm	50 °C	-25 °C	30 V	Green/Red LED	125 V
NKK Switches YB16MKW01-CB	Panel Mount Snap-In		Button Round	Tactile Feedback	3 A	No Marking	SPDT	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	200000 Cycles	On-On	Standard	Red	16 mm	70 °C	-25 °C	30 V		125 V
NKK Switches YB16MKG01-6G-JB	Panel Mount Snap-In	3.6 VDC	Button Round	Tactile Feedback	0.4 VA	No Marking	SPDT	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	200000 Cycles	On-On	Illuminated Standard	Clear	16 mm	50 °C	-25 °C	28 V	Blue LED	28 V
NKK Switches YB16MKW01-5C24-JC	Panel Mount Snap-In	24 V	Button Round	Tactile Feedback	3 A	No Marking	SPDT	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	200000 Cycles	On-On	Illuminated Standard	Clear (Red Filter/Diffuser)	16 mm	50 °C	-25 °C	30 V	LED Red	125 V
NKK Switches YB16MKW01-1F12-JA	Panel Mount Snap-In	12 VDC	Button Round	Tactile Feedback	3 A	No Marking	SPDT	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	200000 Cycles	On-On	Illuminated Standard	Clear	16 mm	50 °C	-25 °C	30 V	Green LED	125 V
NKK Switches YB16MKW01-6F-JB	Panel Mount Snap-In	3.3 VDC	Button Round	Tactile Feedback	3 A	No Marking	SPDT	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	200000 Cycles	On-On	Illuminated Standard	Clear	16 mm	50 °C	-25 °C	30 V	Green LED	125 V
NKK Switches YB16MKW01-1F12-JF	Panel Mount Snap-In	12 VDC	Button Round	Tactile Feedback	3 A	No Marking	SPDT	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	200000 Cycles	On-On	Illuminated Standard	Clear	16 mm	50 °C	-25 °C	30 V	Green LED	125 V
NKK Switches YB16MKW01	Panel Mount Snap-In		Plunger for Cap	Tactile Feedback	3 A	No Marking	SPDT	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	200000 Cycles	On-On	Standard		16 mm	70 °C	-25 °C	30 V		125 V
NKK Switches YB16MKG01-1CF05-JA	Panel Mount Snap-In	5 VDC	Button Round	Tactile Feedback	0.4 VA	No Marking	SPDT	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	200000 Cycles	On-On	Illuminated Standard	Clear	16 mm	50 °C	-25 °C	28 V	Green/Red LED	28 V
NKK Switches YB16MKW01-6G-JB	Panel Mount Snap-In	3.6 VDC	Button Round	Tactile Feedback	3 A	No Marking	SPDT		Solder Lug		100000 Cycles	200000 Cycles	On-On	Illuminated Standard	Clear	16 mm	70 °C	-25 °C	30 V	Blue LED	125 V
