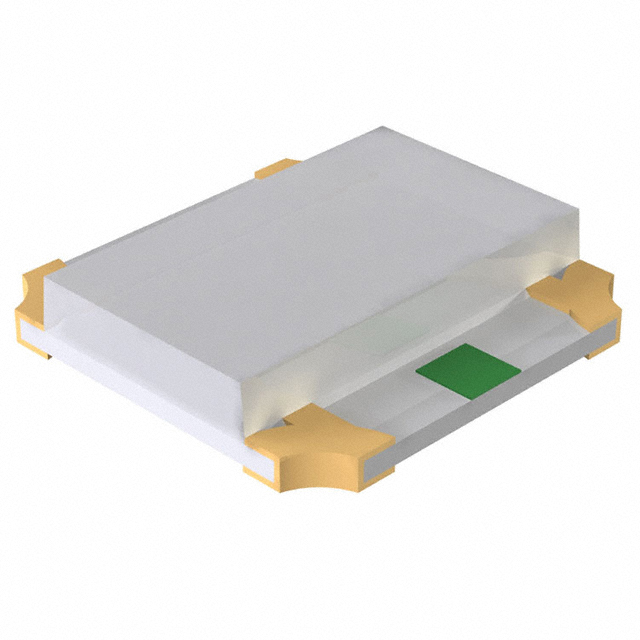

SML-P24MUWT86
NRNDRohm Semiconductor
LED GRN/RED DIFFUSED PICOLED SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SML-P24MUWT86
NRNDRohm Semiconductor
LED GRN/RED DIFFUSED PICOLED SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-P24MUWT86 |
|---|---|
| Color | Red, Green |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] | 0.25 mm |
| Lens Color | White |
| Lens Size [x] | 1 mm |
| Lens Size [y] | 0.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 52 mcd |
| Millicandela Rating [custom] | 21 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0404 |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [y] | 1 mm |
| Supplier Device Package | PICOLED |
| Voltage - Forward (Vf) (Typ) [custom] | 2.2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.1 V |
| Wavelength - Dominant [custom] | 620 nm, 572 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.56 | |
| 10 | $ 0.37 | |||
| 100 | $ 0.24 | |||
| 1000 | $ 0.19 | |||
| 2000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.56 | ||
| 10 | $ 0.37 | |||
| 100 | $ 0.24 | |||
| 1000 | $ 0.19 | |||
| 2000 | $ 0.17 | |||
| Tape & Reel (TR) | 5000 | $ 0.16 | ||
| 10000 | $ 0.15 | |||
| 25000 | $ 0.15 | |||
| 50000 | $ 0.14 | |||
Description
General part information
SML-P24 Series
Green, Red 572nm Green, 620nm Red LED Indication - Discrete 2.2V Green, 2.1V Red 0404 (1010 Metric)
