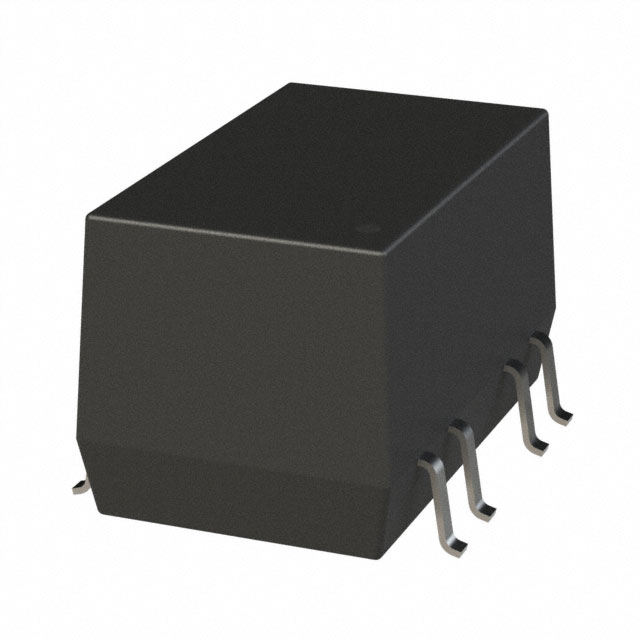

TSH 0505S
Traco Power
DC DC CONVERTER 5V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSH 0505S
Traco Power
DC DC CONVERTER 5V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSH 0505S |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 400 mA |
| Efficiency | 77 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5 Leads |
| Package / Case [Max] | 14-SMD Module |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [x] | 12.7 mm |
| Size / Dimension [y] | 0.37 " |
| Size / Dimension [y] | 9.3 mm |
| Size / Dimension [z] | 0.36 in |
| Size / Dimension [z] | 9.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 19.30 | |
| 10 | $ 16.88 | |||
| 25 | $ 16.32 | |||
| 50 | $ 15.91 | |||
| 100 | $ 15.51 | |||
| 250 | $ 15.00 | |||
| 500 | $ 14.62 | |||
Description
General part information
TSH 0505 Series
Isolated Module DC DC Converter 1 Output 5V 400mA 4.5V - 5.5V Input
