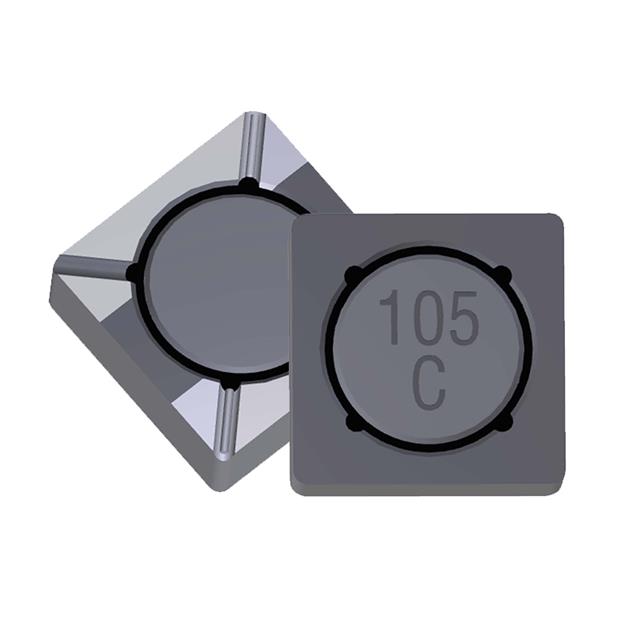

34684C

Active

Murata Power Solutions Inc.

FIXED IND 680UH 110MA 11.15 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Power Magnetics Selection Guide

34684C

Active

Murata Power Solutions Inc.

FIXED IND 680UH 110MA 11.15 OHM

Deep-Dive with AI

DocumentsDatasheet Power Magnetics Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	34684C

Current Rating (Amps)	110 mA
DC Resistance (DCR) [Max]	11.15 Ohm
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Inductance	680 µH
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	0.205 in
Size / Dimension [x]	5.2 mm
Size / Dimension [y]	0.205 "
Size / Dimension [y]	5.2 mm
Tolerance	20 %
Type	Wirewound

34 Series

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Inductance	Mounting Type	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Type	Current Rating (Amps)	DC Resistance (DCR)
Murata Power Solutions Inc. 34683C	0.205 "	5.2 mm	0.205 in	5.2 mm	Nonstandard	68 µH	Surface Mount	20 %	125 °C	-40 °C	1.05 Ohm	2 mm	0.079 in	Shielded	Wirewound	350 mA
Murata Power Solutions Inc. 34152C	0.205 "	5.2 mm	0.205 in	5.2 mm	Nonstandard	1.5 µH	Surface Mount	30 %	125 °C	-40 °C	40 mOhm	2 mm	0.079 in	Shielded	Wirewound	2.1 A
Murata Power Solutions Inc. 34334C	0.205 "	5.2 mm	0.205 in	5.2 mm	Nonstandard	330 µH	Surface Mount	20 %	125 °C	-40 °C	4.55 Ohm	2 mm	0.079 in	Shielded	Wirewound	150 mA
Murata Power Solutions Inc. 34103C	0.205 "	5.2 mm	0.205 in	5.2 mm	Nonstandard	10 µH	Surface Mount	20 %	125 °C	-40 °C		2 mm	0.079 in	Shielded	Wirewound	800 mA	200 mOhm
Murata Power Solutions Inc. 34472C	0.205 "	5.2 mm	0.205 in	5.2 mm	Nonstandard	4.7 ÁH	Surface Mount	30 %	125 °C	-40 °C		2 mm	0.079 in	Shielded	Wirewound	1.3 A	100 mOhm
Murata Power Solutions Inc. 34122C	0.205 "	5.2 mm	0.205 in	5.2 mm	Nonstandard	1.2 µH	Surface Mount	30 %	125 °C	-40 °C	30 mOhm	2 mm	0.079 in	Shielded	Wirewound	2.5 A
Murata Power Solutions Inc. 34684C	0.205 "	5.2 mm	0.205 in	5.2 mm	Nonstandard	680 µH	Surface Mount	20 %	125 °C	-40 °C	11.15 Ohm	2 mm	0.079 in	Shielded	Wirewound	110 mA
Murata Power Solutions Inc. 34153C	0.205 "	5.2 mm	0.205 in	5.2 mm	Nonstandard	15 µH	Surface Mount	20 %	125 °C	-40 °C	280 mOhm	2 mm	0.079 in	Shielded	Wirewound	0.68 A
Murata Power Solutions Inc. 34474C	0.205 "	5.2 mm	0.205 in	5.2 mm	Nonstandard		Surface Mount	20 %	125 °C	-40 °C		2 mm	0.079 in	Shielded	Wirewound	130 mA	7.65 Ohm
Murata Power Solutions Inc. 34223C	0.205 "	5.2 mm	0.205 in	5.2 mm	Nonstandard	22 µH	Surface Mount	20 %	125 °C	-40 °C	360 mOhm	2 mm	0.079 in	Shielded	Wirewound	0.53 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 1.08
Newark	Each	1000	$ 1.09

Description

General part information

34 Series

680 µH Shielded Wirewound Inductor 110 mA 11.15Ohm Max Nonstandard
