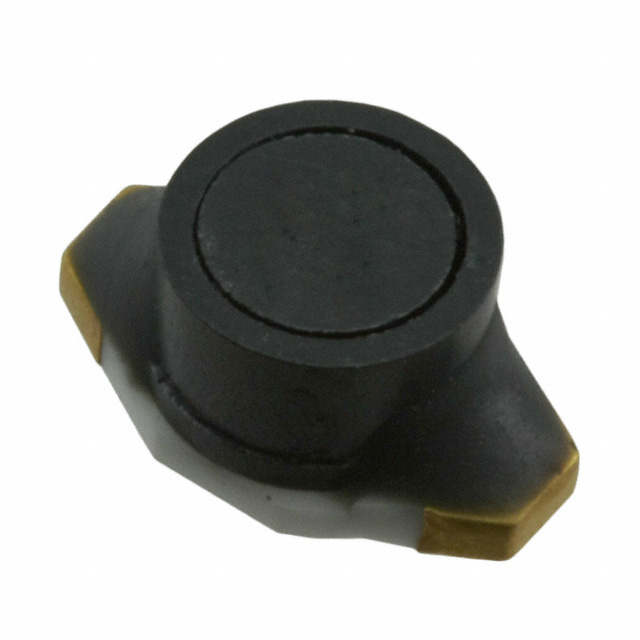

SRR6603-682ML
ActiveBourns Inc.
INDUCTOR,FERRITE,6.8MH,20+% TOL,20-% TOL,2617-CASE ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRR6603-682ML
ActiveBourns Inc.
INDUCTOR,FERRITE,6.8MH,20+% TOL,20-% TOL,2617-CASE ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRR6603-682ML |
|---|---|
| Current - Saturation (Isat) | 19 mA |
| Current Rating (Amps) | 40 mA |
| DC Resistance (DCR) [Max] | 25 Ohm |
| Frequency - Self Resonant | 1 MHz |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 100 kHz, 50 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.26 in |
| Size / Dimension [x] | 6.6 mm |
| Size / Dimension [y] | 4.4 mm |
| Size / Dimension [y] | 0.173 " |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.35 | |
| 10 | $ 1.14 | |||
| 25 | $ 1.04 | |||
| 50 | $ 0.97 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.75 | |||
| Digi-Reel® | 1 | $ 1.35 | ||
| 10 | $ 1.14 | |||
| 25 | $ 1.04 | |||
| 50 | $ 0.97 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.75 | |||
| Tape & Reel (TR) | 600 | $ 0.70 | ||
| 1200 | $ 0.64 | |||
| 3000 | $ 0.62 | |||
| 6000 | $ 0.60 | |||
| 15000 | $ 0.58 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.74 | |
| 1000 | $ 0.71 | |||
| 2000 | $ 0.64 | |||
| 4000 | $ 0.58 | |||
| 6000 | $ 0.56 | |||
| 10000 | $ 0.55 | |||
Description
General part information
SRR6603 Series
6.8 mH Shielded Drum Core, Wirewound Inductor 40 mA 25Ohm Max Nonstandard
