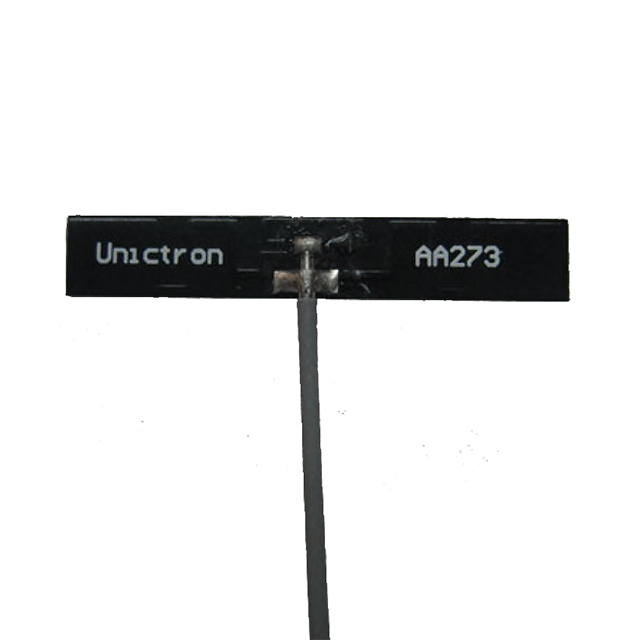

H2B1BC2A1B225L
ActiveUnictron Technologies Corporation
WIFI/BT 2400-2500 MHZ PCB ANTENN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2B1BC2A1B225L
ActiveUnictron Technologies Corporation
WIFI/BT 2400-2500 MHZ PCB ANTENN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2B1BC2A1B225L |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Wi-Fi, 802.11b/g/n |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 2.442 GHz |
| Height (Max) [Max] | 0.5 mm |
| Height (Max) [Max] | 0.02 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| RF Family/Standard | WiFi |
| Termination | IPEX MHF1, U.FL (UMCC), I-PEX MHF1 |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.98 | |
| 10 | $ 1.89 | |||
| 25 | $ 1.60 | |||
| 100 | $ 1.28 | |||
| 250 | $ 1.12 | |||
| 500 | $ 1.03 | |||
| 2000 | $ 0.88 | |||
| 4000 | $ 0.86 | |||
| 6000 | $ 0.91 | |||
Description
General part information
H2B1BC2 Series
RF ANTENNA 802.11b/g/n, Wi-Fi PCB Trace U.FL (UMCC), I-PEX MHF1 Surface Mount
Documents
Technical documentation and resources
