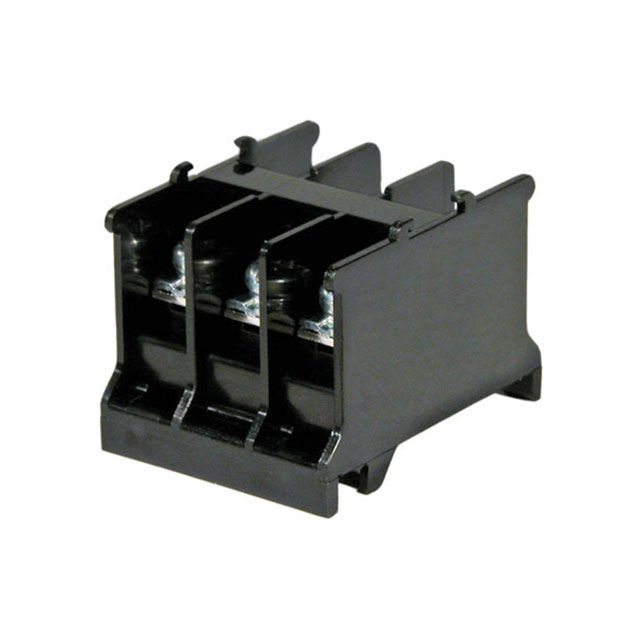

BA211T
ActiveIDEC
BA SERIES TERMINAL BLOCK
Deep-Dive with AI
Search across all available documentation for this part.
BA211T
ActiveIDEC
BA SERIES TERMINAL BLOCK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BA211T |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Closed |
| Color | Black |
| Current Rating (Amps) | 20 A |
| Mounting Type | DIN Rail |
| Number of Circuits | 3 |
| Number of Rows | 3 |
| Number of Wire Entries | 6 |
| Pitch [x] | 0.386 in |
| Pitch [x] | 9.8 mm |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.25 | |
| 10 | $ 2.89 | |||
| 25 | $ 2.62 | |||
| 50 | $ 2.48 | |||
| 100 | $ 2.37 | |||
| 250 | $ 2.27 | |||
| 500 | $ 2.21 | |||
| 1000 | $ 2.17 | |||
Description
General part information
BA211 Series
3 Circuit 0.386" (9.80mm) Barrier Block Connector Screws
Documents
Technical documentation and resources
No documents available
