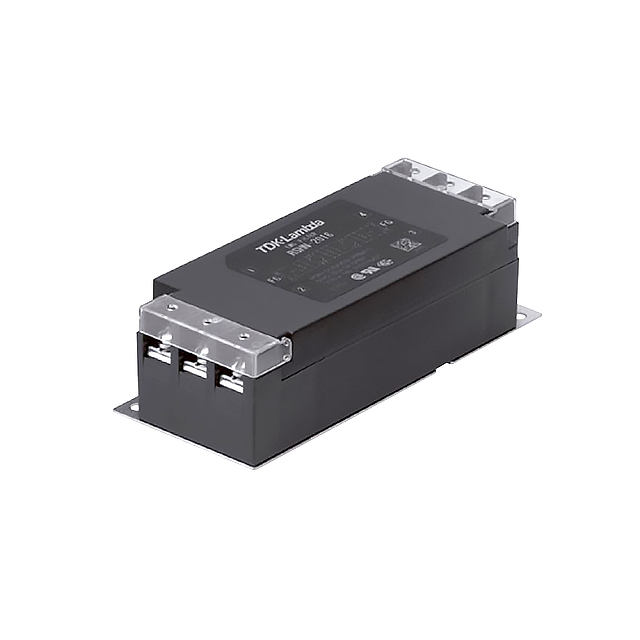

RSHN-2030 - RSHN-Series

RSHN-2030

Active
TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 250 V, 30 A, SINGLE PHASE, 1 STAGE, CHASSIS MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetUser Manual EN+1
RSHN-2030 - RSHN-Series

RSHN-2030

Active
TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 250 V, 30 A, SINGLE PHASE, 1 STAGE, CHASSIS MOUNT

Deep-Dive with AI

DocumentsDatasheetUser Manual EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationRSHN-2030
ApplicationsGeneral Purpose
Approval AgencyCSA, EN, UL
ConfigurationTwo Stage
Current30 A
Filter TypeSingle Phase
Mounting TypeChassis Mount
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Termination StyleTerminal Block
Voltage - Rated AC250 V
Voltage - Rated DC250 V

RSHN Series

PartTermination StyleConfigurationVoltage - Rated DCOperating Temperature [Min]Operating Temperature [Max]Filter TypeVoltage - Rated ACCurrentMounting TypeApplicationsApproval Agency
TDK-LAMBDA
RSHN-2050
Terminal Block
Two Stage
250 V
-25 °C
85 °C
Single Phase
250 V
50 A
Chassis Mount
General Purpose
TDK-LAMBDA
RSHN-2003LD
Terminal Block
Two Stage
250 V
-25 °C
85 °C
Single Phase
250 V
3 A
DIN Rail
General Purpose
CSA
EN
UL
TDK-LAMBDA
RSHN-2010D
Terminal Block
Two Stage
250 V
-25 °C
85 °C
Single Phase
250 V
10 A
DIN Rail
General Purpose
CSA
EN
UL
TDK-LAMBDA
RSHN-2020
Terminal Block
Two Stage
250 V
-25 °C
85 °C
Single Phase
250 V
20 A
Chassis Mount
General Purpose
CSA
EN
UL
TDK-LAMBDA
RSHN-2080
Terminal Block
Two Stage
250 V
-25 °C
85 °C
Single Phase
250 V
80 A
Chassis Mount
General Purpose
TDK-LAMBDA
RSHN-2016
Terminal Block
Two Stage
250 V
-25 °C
85 °C
Single Phase
250 V
16 A
Chassis Mount
General Purpose
CSA
EN
UL
TDK-LAMBDA
RSHN-2030
Terminal Block
Two Stage
250 V
-25 °C
85 °C
Single Phase
250 V
30 A
Chassis Mount
General Purpose
CSA
EN
UL
TDK-LAMBDA
RSHN-2030L
Terminal Block
Two Stage
250 V
-25 °C
85 °C
Single Phase
250 V
30 A
Chassis Mount
General Purpose
CSA
EN
UL
TDK-LAMBDA
RSHN-2040
Terminal Block
Two Stage
250 V
-25 °C
85 °C
Single Phase
250 V
40 A
Chassis Mount
General Purpose
TDK-LAMBDA
RSHN-2003
Terminal Block
Two Stage
250 V
-25 °C
85 °C
Single Phase
250 V
3 A
Chassis Mount
General Purpose
CSA
EN
UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 45.68
10$ 44.66
25$ 42.71
50$ 41.80
NewarkEach 1$ 45.68
10$ 44.66
25$ 42.71
50$ 41.80

Description

General part information

RSHN Series

Single Phase EMC/EMI Line Filter 30 A 250V 250V Two Stage Terminal Block
