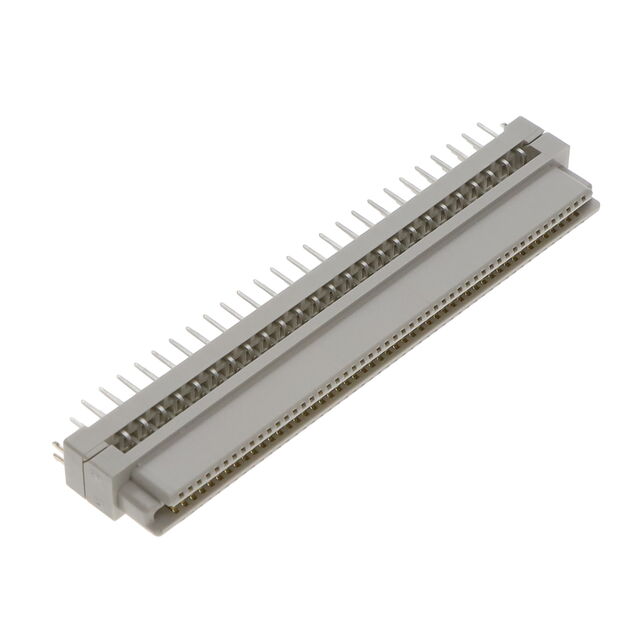

XH3B-0141-4A
ActiveOmron Electronics Inc-EMC Div
CONN BOARD TO BOARD SKT 100 POS 1.27MM SOLDER ST THRU-HOLE
Deep-Dive with AI
Search across all available documentation for this part.
XH3B-0141-4A
ActiveOmron Electronics Inc-EMC Div
CONN BOARD TO BOARD SKT 100 POS 1.27MM SOLDER ST THRU-HOLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XH3B-0141-4A |
|---|---|
| Connector Type | Socket, Outer Shroud Contacts |
| Contact Finish | Gold |
| Height Above Board | 0.524 in |
| Height Above Board | 13.31 mm |
| Mated Stacking Heights | 16 mm, 18 mm, 20 mm |
| Mounting Type | Through Hole |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.85 | |
| 10 | $ 8.86 | |||
| 30 | $ 8.35 | |||
| 60 | $ 8.14 | |||
| 90 | $ 7.92 | |||
| 240 | $ 7.07 | |||
| 450 | $ 6.64 | |||
| 960 | $ 5.87 | |||
Description
General part information
XH3B-0141 Series
100 Position Connector Socket, Outer Shroud Contacts Through Hole Gold
