0153660860

Active

Molex

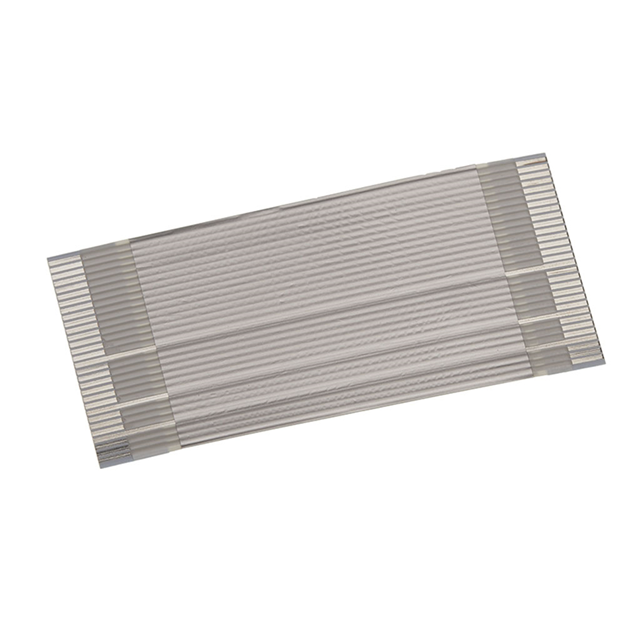

CABLE FFC/FPC 17POS 0.5MM 4"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 17POS 0.5MM 4"

Technical Specifications

Parameters and characteristics for this part

Specification	0153660860

Cable Type	FPC, FFC
Length	4 in
Length	101.6 mm
Length - Exposed Ends [x]	4 mm
Length - Exposed Ends [x]	0.157 in
Number of Conductors	17
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Top on One Side, Bottom on Other, Backers on Both Sides

...

Part	Cable Type	Number of Conductors	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Termination Style	Pitch [x]	Pitch [x]	Length	Length	Length [x]
Molex 0153661035	FFC FPC	33	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	3 in	76.2 mm
Molex 0153660318	FFC FPC	30	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	0.5 mm	0.02 in	2 in	50.8 mm
Molex 0153661124	FFC FPC		4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	0.5 mm	0.02 in	4 in	101.6 mm
Molex 0153660313	FFC FPC	28	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in		304.8 mm	12 in
Molex 0153660860	FFC FPC	17	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	0.5 mm	0.02 in	4 in	101.6 mm
Molex 0153660917	FFC FPC	21	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in		254 mm	10 in
Molex 0153660550	FFC FPC	50	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	0.5 mm	0.02 in	8 in	203.2 mm
Molex 0153660092	FFC FPC	8	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	0.5 mm	0.02 in		254 mm	10 in
Molex 0153660068	FFC FPC	6	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	0.5 mm	0.02 in	9 "	228.6 mm
Molex 0153660110	FFC FPC	10	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	0.5 mm	0.02 in	8 in	203.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 3.91

General part information

17 Position FFC, FPC Cable 0.020" (0.50mm) 4.000" (101.60mm)

Technical documentation and resources
