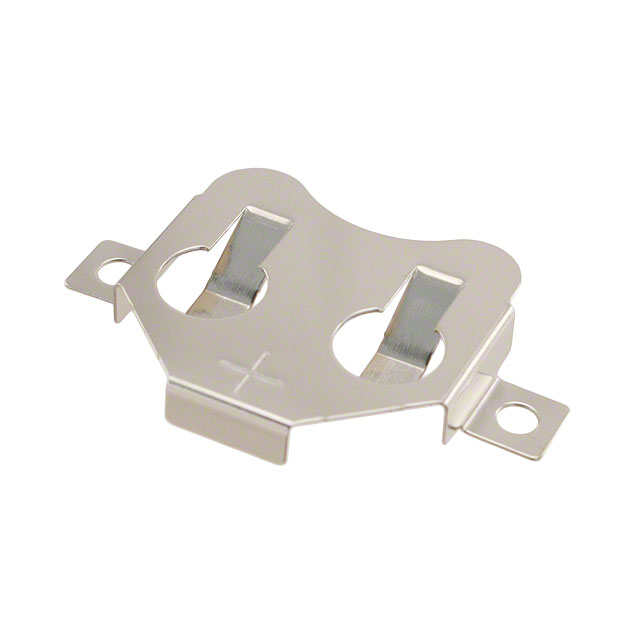

BK-883-TR
ActiveMPD (Memory Protection Devices)
BATTERY RETAINER COIN 20MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
BK-883-TR
ActiveMPD (Memory Protection Devices)
BATTERY RETAINER COIN 20MM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BK-883-TR |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 20 mm |
| Battery Series | 2025, 2020, 2032, 2016 |
| Height Above Board [z] | 3.96 mm |
| Height Above Board [z] | 0.156 in |
| Mounting Type | PCB, Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 270 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Retainer |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.62 | |
| 10 | $ 0.52 | |||
| 50 | $ 0.46 | |||
| 100 | $ 0.43 | |||
| Digi-Reel® | 1 | $ 0.62 | ||
| 10 | $ 0.52 | |||
| 50 | $ 0.46 | |||
| 100 | $ 0.43 | |||
| Tape & Reel (TR) | 450 | $ 0.40 | ||
| 900 | $ 0.37 | |||
| 1350 | $ 0.35 | |||
| 3150 | $ 0.32 | |||
| 11250 | $ 0.29 | |||
Description
General part information
BK-883 Series
Battery Retainer Coin, 20.0mm 1 Cell SMD (SMT) Tab
Documents
Technical documentation and resources
