09212643101

Active

HARTING Technology Group

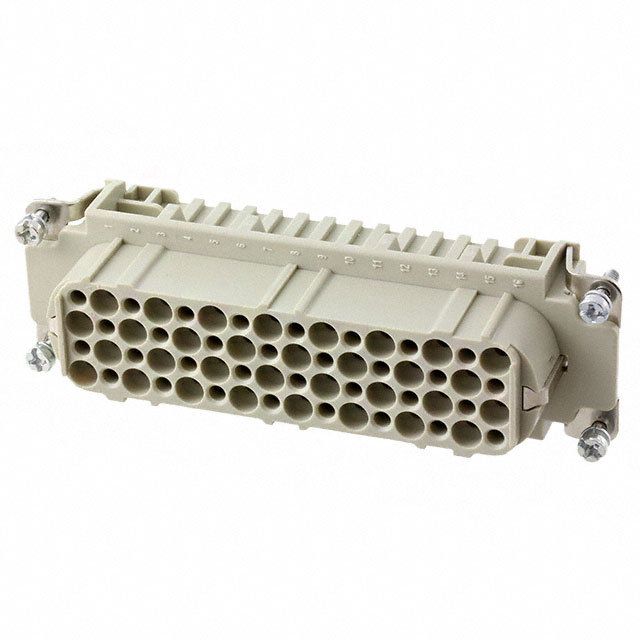

HEAVY DUTY INSERT, RCPT, 64+PE, 2.5MM2

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY INSERT, RCPT, 64+PE, 2.5MM2

Technical Specifications

Parameters and characteristics for this part

Specification	09212643101

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han D® HMC
Current Rating (Amps)	10 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	64+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Termination Style	Crimp
Voltage Rating	250 VDC

Part	Number of Positions	Size	Current Rating (Amps)	Color	Material Flammability Rating	Termination Style	Gender	Housing Material	Connector Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating
HARTING Technology Group 09212643101	64+Ground	24 B	10 A	Gray	UL94 V-0	Crimp	Female	Polycarbonate (PC)	Insert without Contacts	Han D® HMC	125 °C	-40 °C	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Gray 64+Ground Position Crimp
