09210642601

Active

HARTING Technology Group

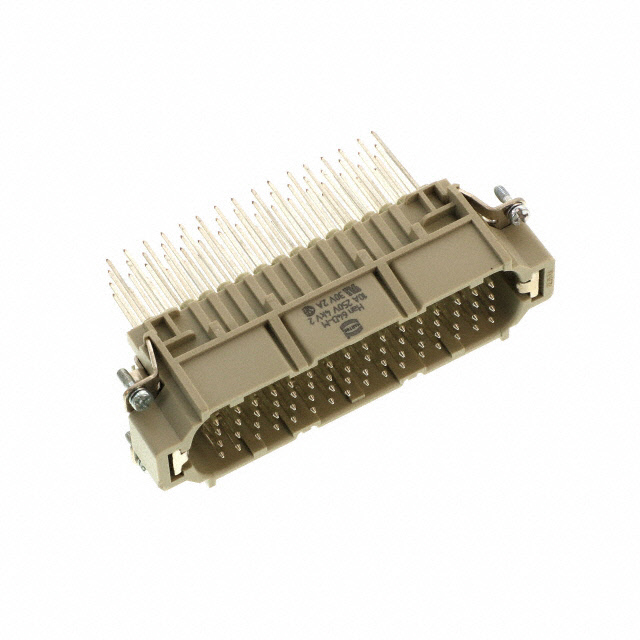

HAN D 64 POS. M INSERT WIRE WRAP ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN D 64 POS. M INSERT WIRE WRAP ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09210642601

Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	64+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Termination Style	Wire Wrap
Voltage Rating	250 VDC

Part	Contact Material	Number of Positions	Gender	Voltage Rating	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Size	Material Flammability Rating
HARTING Technology Group 09210642601	Copper Alloy	64+Ground	Male	250 VDC	Wire Wrap	10 A	125 °C	-40 °C	Polycarbonate (PC)	24 B	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert 64+Ground Position Wire Wrap
