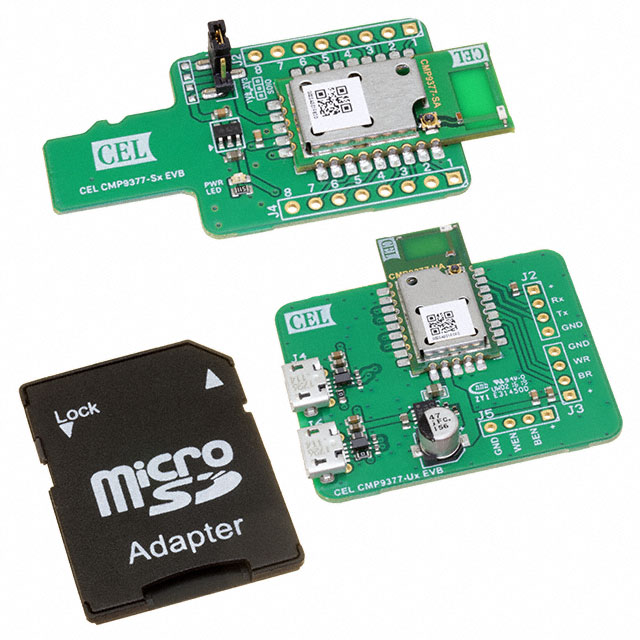

CMP9377-S-EVB

Active

CEL

SDIO EVAL BOARD

Search across all available documentation for this part.

Active

CEL

SDIO EVAL BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	CMP9377-S-EVB

For Use With/Related Products	CMP9377
Frequency	5 GHz, 2.4 GHz
Supplied Contents	Board(s)
Type	Bluetooth® 5.x (BLE), Transceiver, 802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN)

Part	For Use With/Related Products	Frequency	Type	Supplied Contents	Serial Interfaces	Voltage - Supply	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Protocol	Antenna Type	Mounting Type	Power - Output
CEL CMP9377-U-EVB	CMP9377	2.4 GHz 5 GHz	802.11 a/b/g/n/ac (Wi-Fi WiFi WLAN) Bluetooth® 5.x (BLE) Transceiver	Board(s)
CEL CMP9377-SA		2.4 GHz 5 GHz			SDIO UART	3.3 V	Module	85 °C	-40 °C	Bluetooth WiFi	802.11a/b/g/n/ac Bluetooth v5.0	Integrated Chip	Surface Mount	20 dBm
CEL CMP9377-UC		2.4 GHz 5 GHz			USB	3.3 V	Module	85 °C	-40 °C	Bluetooth WiFi	802.11a/b/g/n/ac Bluetooth v5.0	Antenna Not Included	Surface Mount	20 dBm
CEL CMP9377-SC		2.4 GHz 5 GHz			SDIO UART	3.3 V	Module	85 °C	-40 °C	Bluetooth WiFi	802.11a/b/g/n/ac Bluetooth v5.0	Antenna Not Included	Surface Mount	20 dBm
CEL CMP9377-S-EVB	CMP9377	2.4 GHz 5 GHz	802.11 a/b/g/n/ac (Wi-Fi WiFi WLAN) Bluetooth® 5.x (BLE) Transceiver	Board(s)
CEL CMP9377-UA		2.4 GHz 5 GHz			USB	3.3 V	Module	85 °C	-40 °C	Bluetooth WiFi	802.11a/b/g/n/ac Bluetooth v5.0	Integrated Chip	Surface Mount	20 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 63.12

General part information

CMP9377 - Transceiver; 802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE) 2.4GHz, 5GHz Evaluation Board
