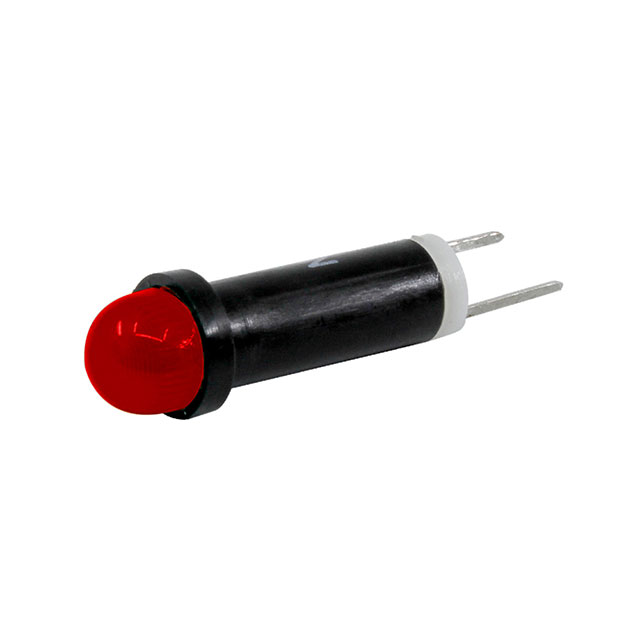

C46-BR5H-CWO
ObsoleteVisual Communications Company - VCC
PMI LS 5-15-15
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C46-BR5H-CWO
ObsoleteVisual Communications Company - VCC
PMI LS 5-15-15
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C46-BR5H-CWO |
|---|---|
| Current | 22 mA |
| Lamp Color | Red |
| Lens Color | Colorless |
| Lens Size [diameter] | 7.1 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Panel Cutout Dimensions | 6.35 mm |
| Panel Cutout Dimensions | 0.25 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | PC Pin |
| Type | LED |
| Voltage | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
C46-BR5H Series
LED Panel Indicator Red Clear 5V 22mA PC Pin
