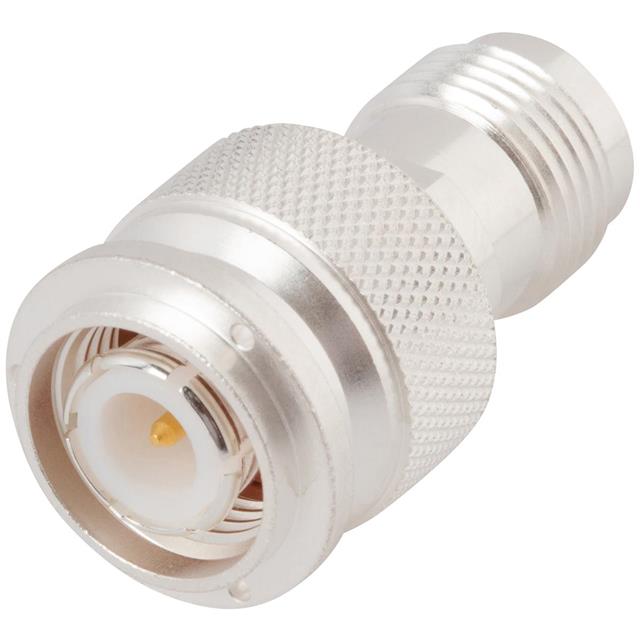

4133-0002

Active

Amphenol SV Microwave

CONN ADAPT JACK-PLUG TNC 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN ADAPT JACK-PLUG TNC 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	4133-0002

Adapter Series	TNC to TNC
Adapter Type	Plug to Jack
Body Finish	Silver
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	TNC Jack, Female Socket
Convert To (Adapter End)	TNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	15 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Mating Cycles	Convert From (Adapter End)	Mounting Type	Body Material	Body Finish	Conversion Type	Center Contact Material	Impedance	Convert To (Adapter End)	Dielectric Material	Style	Adapter Series	Adapter Type	Center Contact Plating	Frequency - Max [Max]
Amphenol SV Microwave 4133-0002	500	TNC Jack Female Socket	Free Hanging (In-Line)	Brass	Silver	Same Series	Beryllium Copper	50 Ohms	Male Pin TNC Plug	Polytetrafluoroethylene (PTFE)	Straight	TNC to TNC	Plug to Jack	Gold	15 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 104.25

General part information

Adapter Coaxial Connector TNC Jack, Female Socket To TNC Plug, Male Pin 50 Ohms
