842-039-520-102
ActiveEDAC Inc.

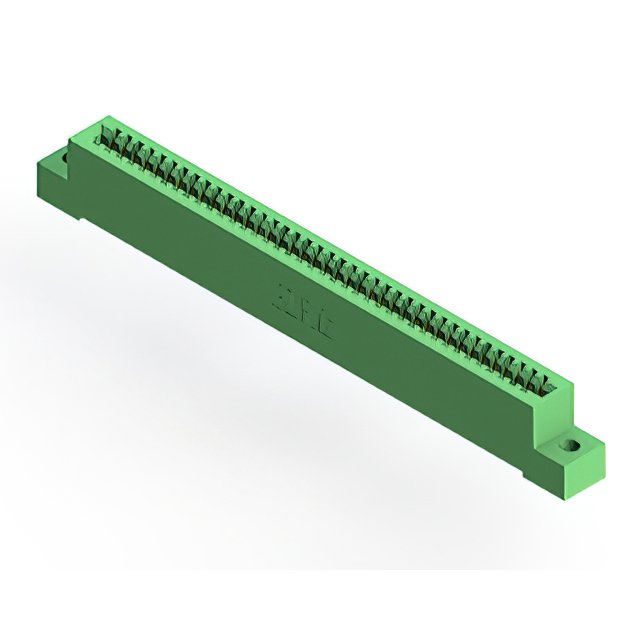

CONN EDGE SINGLE FML 39POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-039-520-102
ActiveEDAC Inc.
CONN EDGE SINGLE FML 39POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-039-520-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 39 |
| Number of Positions/Bay/Row [custom] | 39 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
842-039 Series
| Part | Material - Insulation | Number of Positions | Mounting Type | Number of Positions/Bay/Row [custom] | Contact Type | Card Type | Pitch [x] | Pitch [x] | Color | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Contact Material | Number of Rows | Flange Feature | Read Out | Termination Rows | Contact Finish | Termination | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Diallyl Phthalate (DAP) | 39 | Through Hole | 39 | Cantilever | Non Specified - Single Edge | 2.54 mm | 0.1 in | Green | 125 °C | -40 °C | Female | Copper Alloy | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Single | 1 | Gold | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 39 | Through Hole | 39 | Cantilever | Non Specified - Single Edge | 2.54 mm | 0.1 in | Green | 125 °C | -40 °C | Female | Copper Alloy | 1 | Flush Mount Side Opening Unthreaded | Single | 1 | Gold | Wire Wrap | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " |
EDAC Inc. | Diallyl Phthalate (DAP) | 39 | Through Hole | 39 | Cantilever | Non Specified - Single Edge | 2.54 mm | 0.1 in | Green | 125 °C | -40 °C | Female | Copper Alloy | 1 | Flush Mount Top Opening Unthreaded | Single | 1 | Gold | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " |
EDAC Inc. | Diallyl Phthalate (DAP) | 39 | Through Hole | 39 | Cantilever | Non Specified - Single Edge | 2.54 mm | 0.1 in | Green | 125 °C | -40 °C | Female | Copper Alloy | 1 | Flush Mount M3 Threaded Insert Top Opening | Single | 1 | Gold | Wire Wrap | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 39 | Through Hole | 39 | Cantilever | Non Specified - Single Edge | 2.54 mm | 0.1 in | Green | 125 °C | -40 °C | Female | Copper Alloy | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Single | 1 | Gold | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 39 | Through Hole | 39 | Cantilever | Non Specified - Single Edge | 2.54 mm | 0.1 in | Green | 125 °C | -40 °C | Female | Copper Alloy | 1 | Flush Mount Top Opening Unthreaded | Single | 1 | Gold | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " |
EDAC Inc. | Diallyl Phthalate (DAP) | 39 | Through Hole | 39 | Cantilever | Non Specified - Single Edge | 2.54 mm | 0.1 in | Green | 125 °C | -40 °C | Female | Copper Alloy | 1 | Flush Mount Side Opening Unthreaded | Single | 1 | Gold | Wire Wrap | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " |
EDAC Inc. | Diallyl Phthalate (DAP) | 39 | Through Hole | 39 | Cantilever | Non Specified - Single Edge | 2.54 mm | 0.1 in | Green | 125 °C | -40 °C | Female | Copper Alloy | 1 | Flush Mount Side Opening Unthreaded | Single | 1 | Gold | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " |
EDAC Inc. | Diallyl Phthalate (DAP) | 39 | Through Hole | 39 | Cantilever | Non Specified - Single Edge | 2.54 mm | 0.1 in | Green | 125 °C | -40 °C | Female | Copper Alloy | 1 | Flush Mount Side Opening Unthreaded | Single | 1 | Gold | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " |
EDAC Inc. | Diallyl Phthalate (DAP) | 39 | Through Hole | 39 | Cantilever | Non Specified - Single Edge | 2.54 mm | 0.1 in | Green | 125 °C | -40 °C | Female | Copper Alloy | 1 | Single | 1 | Gold | Wire Wrap | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
