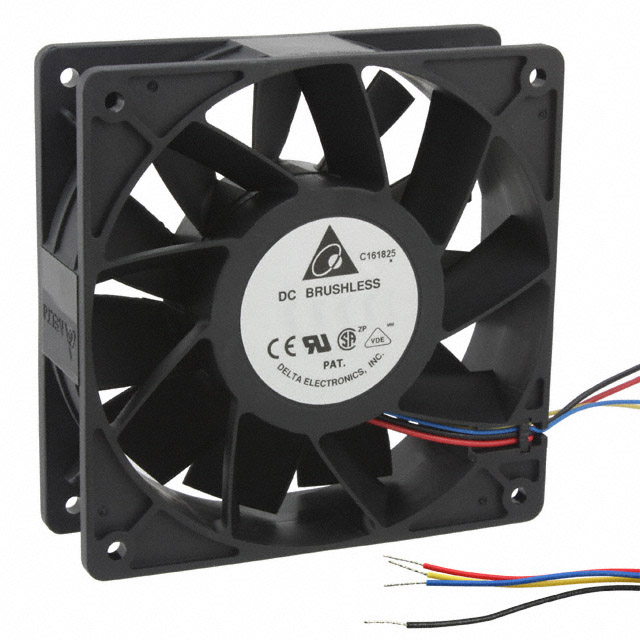

PFC1212DE-F00
ActiveDelta Electronics
DC FAN AXIAL BALL BEARING 12V 8V TO 13.2V 252.85CFM 66.5DB 120 X 120 X 38MM
Deep-Dive with AI
Search across all available documentation for this part.
PFC1212DE-F00
ActiveDelta Electronics
DC FAN AXIAL BALL BEARING 12V 8V TO 13.2V 252.85CFM 66.5DB 120 X 120 X 38MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PFC1212DE-F00 |
|---|---|
| Air Flow | 252.9 CFM |
| Air Flow | 7.08 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 4 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 66.5 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 48 W |
| RPM | 5500 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 351.7 Pa |
| Static Pressure | 1.412 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 8 VDC |
| Weight | 0.838 lb |
| Weight | 380.11 g |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 48.69 | |
| 10 | $ 45.29 | |||
| 36 | $ 40.76 | |||
| 72 | $ 37.36 | |||
| 108 | $ 35.10 | |||
| 252 | $ 30.57 | |||
Description
General part information
PFC1212 Series
Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 252.9 CFM (7.08m³/min) 4 Wire Leads
