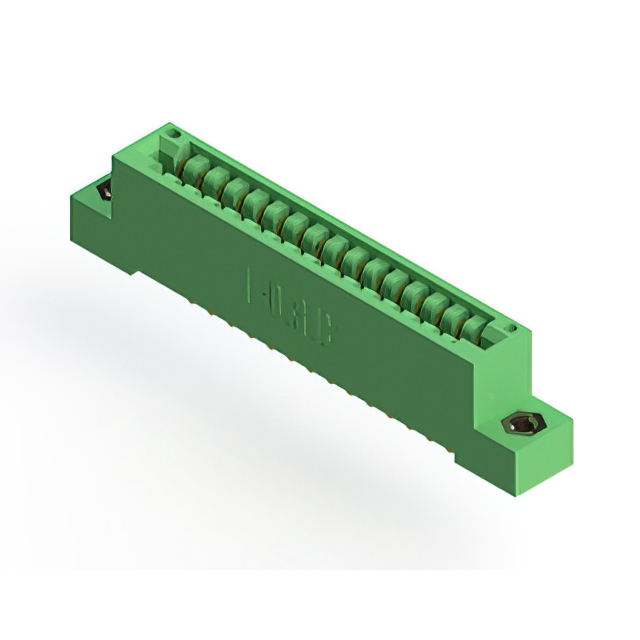

846-016-500-108
ActiveEDAC Inc.
CONN EDGE SGL FMALE 16POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-016-500-108
ActiveEDAC Inc.
CONN EDGE SGL FMALE 16POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-016-500-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 16 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
846-016 Series
...
| Part | Material - Insulation | Number of Positions | Color | Read Out | Contact Finish | Card Type | Number of Positions/Bay/Row [custom] | Mounting Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Contact Type | Gender | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] | Features | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Diallyl Phthalate (DAP) | 16 | Green | Single | Gold | Non Specified - Single Edge | 16 | Through Hole | Solder | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Cantilever | Female | 0.125 in | 3.18 mm | 125 °C | -40 °C | Copper Alloy | ||||||||
EDAC Inc. | Diallyl Phthalate (DAP) | 16 | Green | Single | Gold | Non Specified - Single Edge | 16 | Through Hole | Solder | 10 Áin | 0.25 Ám | Floating Bobbin Flush Mount | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Cantilever | Female | 0.125 in | 3.18 mm | 125 °C | -40 °C | Copper Alloy | 0.116 in | 2.95 mm | ||||||
EDAC Inc. | Diallyl Phthalate (DAP) | 16 | Green | Single | Gold | Non Specified - Single Edge | 16 | Through Hole | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Cantilever | Female | 0.125 in | 3.18 mm | 125 °C | -40 °C | Copper Alloy | ||||||||
EDAC Inc. | Diallyl Phthalate (DAP) | 16 | Green | Dual | Gold | Non Specified - Dual Edge | Board Edge Straddle Mount | Solder | 10 Áin | 0.25 Ám | Floating Bobbin Top Mount Opening | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Female | 0.125 in | 3.18 mm | 125 °C | -40 °C | Copper Alloy | 0.116 in | 2.95 mm | Card Extender | 8 | 8 | 8 | |||
EDAC Inc. | Diallyl Phthalate (DAP) | 16 | Green | Single | Gold | Non Specified - Single Edge | 16 | Through Hole Right Angle | Solder | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Cantilever | Female | 0.125 in | 3.18 mm | 125 °C | -40 °C | Copper Alloy | |||||||||
EDAC Inc. | Diallyl Phthalate (DAP) | 16 | Green | Dual | Gold | Non Specified - Dual Edge | Board Edge Straddle Mount | Solder | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Female | 0.125 in | 3.18 mm | 125 °C | -40 °C | Copper Alloy | Card Extender | 8 | 8 | 8 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | 16 | Green | Single | Gold | Non Specified - Single Edge | 16 | Through Hole | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Cantilever | Female | 0.125 in | 3.18 mm | 125 °C | -40 °C | Copper Alloy | ||||||||
EDAC Inc. | Diallyl Phthalate (DAP) | 16 | Green | Dual | Gold | Non Specified - Dual Edge | Board Edge Straddle Mount | Solder | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Female | 0.125 in | 3.18 mm | 125 °C | -40 °C | Copper Alloy | 0.156 in | 3.96 mm | Card Extender | 8 | 8 | 8 | |||
EDAC Inc. | Diallyl Phthalate (DAP) | 16 | Green | Dual | Gold | Non Specified - Dual Edge | Through Hole | Solder | 10 Áin | 0.25 Ám | Floating Bobbin Top Mount Opening | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Female | 0.125 in | 3.18 mm | 125 °C | -40 °C | Copper Alloy | 0.116 in | 2.95 mm | 8 | 8 | 8 | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | 16 | Green | Dual | Gold | Non Specified - Dual Edge | Through Hole | Solder | 10 Áin | 0.25 Ám | Floating Bobbin Top Mount Opening | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Female | 0.125 in | 3.18 mm | 125 °C | -40 °C | Copper Alloy | 0.116 in | 2.95 mm | 8 | 8 | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-016 Series
16 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
