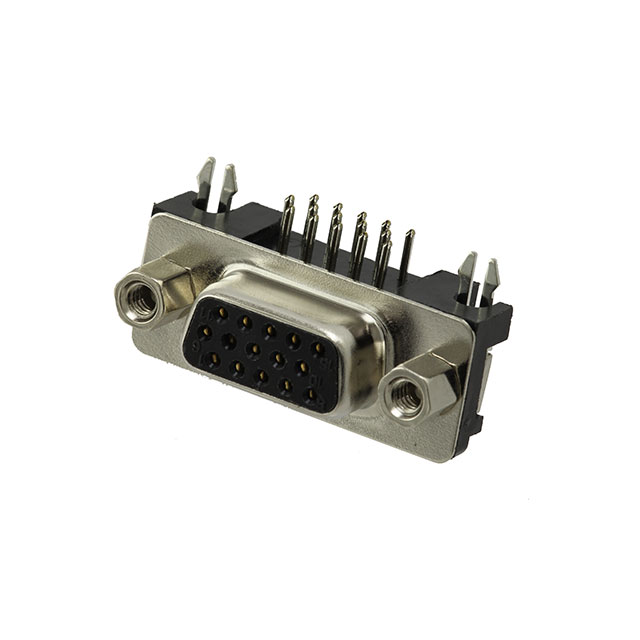

HD15-SN-25

Active

Adam Tech

HD D-SUB SLIM R/A 15 WAY SOCKET

Search across all available documentation for this part.

Active

Adam Tech

HD D-SUB SLIM R/A 15 WAY SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	HD15-SN-25

Backset Spacing	3.08 mm
Backset Spacing	0.121 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	3
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	250 VAC

Part	Voltage Rating	Color	Contact Material	Termination	Connector Style	Contact Finish	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Dielectric Material	Backset Spacing	Backset Spacing	Flange Feature	Material Flammability Rating	Connector Type	Number of Positions	Mounting Type	Current Rating (Amps)
Adam Tech HD15-SN-25	250 VAC	Black	Brass	Solder	D-Sub High Density	Gold	Flash	DE E	1	High Density	3	Polybutylene Terephthalate (PBT) Glass Filled	3.08 mm	0.121 in	Female Screwlock (4-40) Mating Side	UL94 V-0	Receptacle Female Sockets	15	Through Hole Right Angle	3 A
