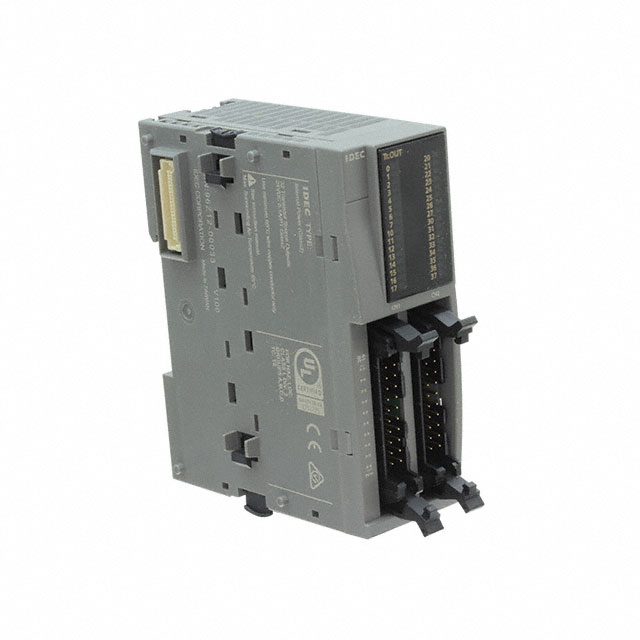

FC6A-T32K3

Active

IDEC

OUTPUT MODULE, TRANSISTOR SINK, 32 POINTS, MIL CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

FC6A-T32K3

Active

IDEC

OUTPUT MODULE, TRANSISTOR SINK, 32 POINTS, MIL CONNECTOR

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FC6A-T32K3

Approval Agency	cULus, CE
For Use With/Related Products	FC6A Series
Mounting Type	DIN Rail
Number of Outputs and Type [custom]	32
Number of Outputs and Type [custom]	Solid State
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Rectangular Connector
Type	Output Module
Voltage - Supply	24 VDC

FC6A Series

PLC Controllers 16pt Sink Exp Module Push-in

Part	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Memory Size	Voltage - Supply	Features	Mounting Type	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Inputs and Type	Number of Inputs and Type	Communications	Display Type	Approval Agency	For Use With/Related Products	Number of Outputs and Type [x]	Termination Style	Type	Number of Outputs and Type [custom]	Number of Outputs and Type	Number of Outputs and Type	Expandable	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]
IDEC FC6A-C40R1DEJ	55 °C	-10 °C	640 KB	12 VDC	Battery Backup (Lithium)	DIN Rail	16	Relay	24	Digital	CAN Ethernet USB	No Display	CE cULus
IDEC FC6A-R081	55 °C	-10 °C		24 VDC		DIN Rail		Relay					CE cULus	FC6A Series	8	Pluggable Screw Terminal	Output Module
IDEC FC6A-T32K3	55 °C	-10 °C		24 VDC		DIN Rail	32						CE cULus	FC6A Series		Rectangular Connector	Output Module	Solid State
IDEC FC6A-L06A1	55 °C	-10 °C		24 VDC		DIN Rail				4 - Analog			CE cULus	FC6A Series		Pluggable Screw Terminal	Input Output (I/O) Module		Analog	2
IDEC FC6A-T16K3	55 °C	-10 °C		24 VDC		DIN Rail							CE cULus	FC6A Series		Rectangular Connector	Output Module		Solid State	16 Outputs
IDEC FC6A-C24R1AE	55 °C	-10 °C	3 Mbit		Battery Backup (Lithium)	DIN Rail			14	Digital	Ethernet RS-232C RS-485 USB	No Display	CE cULus								8 Modules	100 VAC	240 VAC
IDEC FC6A-SIF52	55 °C	-10 °C		24 VDC		DIN Rail							CE cULus	FC6A Series		Pluggable Screw Terminal	Communications Module
IDEC FC6A-EXM1S	55 °C	-10 °C		24 VDC		DIN Rail							CE cULus	FC6A Series		Pluggable Screw Terminal RJ45	Interface Module
IDEC FC6A-N08A11	55 °C	-10 °C		120 VAC		DIN Rail							CE cULus	FC6A Series		Pluggable Screw Terminal	Input Module							8	Digital
IDEC FC6A-EXM1M	55 °C	-10 °C		5 V		DIN Rail							CE cULus	FC6A Series		RJ45	Interface Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 434.79
		10	$ 393.33
		25	$ 377.95
Newark	Each	1	$ 456.71
		5	$ 433.87
		10	$ 424.74
		25	$ 411.03

Description

General part information

FC6A Series

PLC Controllers 16pt Sink Exp Module Push-in

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
