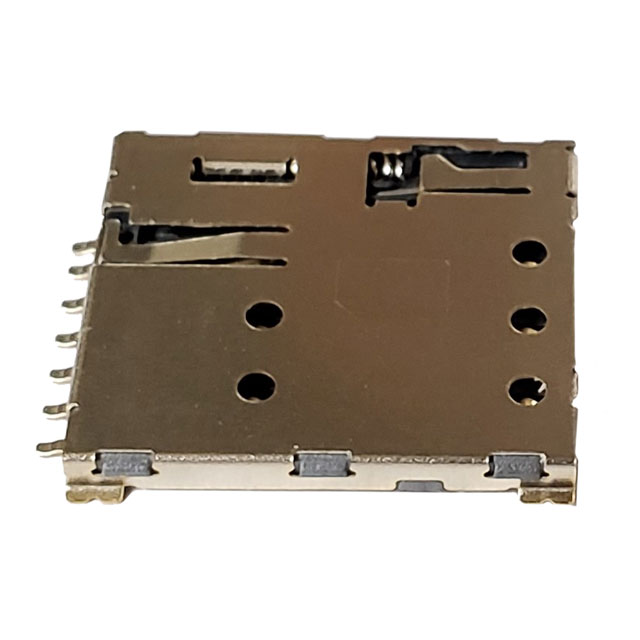

NSCCP-D-06-G-SMT-SW-T/R
ActiveAdam Tech
NANO SIM CARD CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
NSCCP-D-06-G-SMT-SW-T/R
ActiveAdam Tech
NANO SIM CARD CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NSCCP-D-06-G-SMT-SW-T/R |
|---|---|
| Card Type | NANO SIM |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Switch, Board Guide |
| Height Above Board | 1.37 mm |
| Height Above Board | 0.054 in |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 (6 + 2) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.11 | |
| 10 | $ 2.38 | |||
| 25 | $ 2.14 | |||
| 50 | $ 1.98 | |||
| 100 | $ 1.83 | |||
| 250 | $ 1.66 | |||
| 500 | $ 1.55 | |||
| Digi-Reel® | 1 | $ 3.11 | ||
| 10 | $ 2.38 | |||
| 25 | $ 2.14 | |||
| 50 | $ 1.98 | |||
| 100 | $ 1.83 | |||
| 250 | $ 1.66 | |||
| 500 | $ 1.55 | |||
| Tape & Reel (TR) | 1500 | $ 1.38 | ||
| 3000 | $ 1.29 | |||
| 4500 | $ 1.24 | |||
| 7500 | $ 1.21 | |||
Description
General part information
NSCCP-D Series
8 (6 + 2) Position Card Connector NANO SIM Surface Mount, Right Angle Gold
