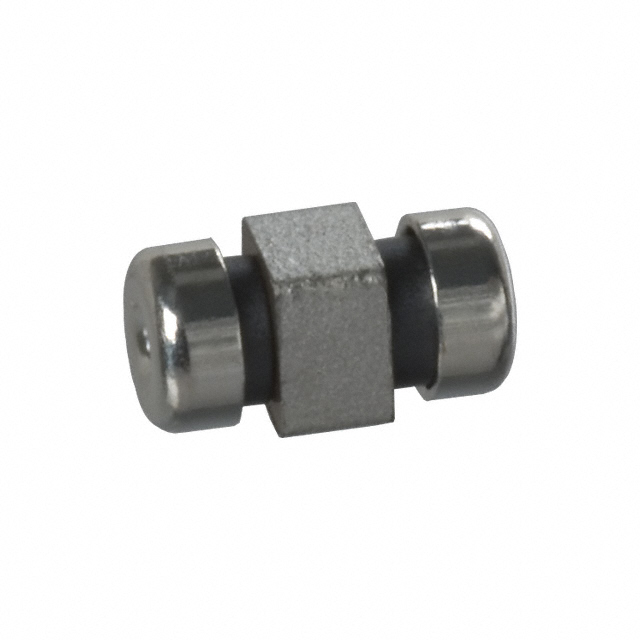

NFE31ZT222Z1E9L
ActiveMurata Power Solutions Inc.
FILTER LC(T)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NFE31ZT222Z1E9L
ActiveMurata Power Solutions Inc.
FILTER LC(T)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NFE31ZT222Z1E9L |
|---|---|
| Applications | General Purpose |
| Current | 6 A |
| ESD Protection | False |
| Filter Order | 3 |
| Height [z] | 1.75 mm |
| Height [z] | 0.069 in |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3 Lead |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Technology | LC (Pi) |
| Type | Low Pass |
| Values | 2200 pF |
| Voltage - Rated | 25 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.73 | |
| 10 | $ 0.70 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.45 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 0.73 | ||
| 10 | $ 0.70 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.45 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.38 | |||
| Tape & Reel (TR) | 2000 | $ 0.38 | ||
| 4000 | $ 0.35 | |||
| 6000 | $ 0.33 | |||
| 10000 | $ 0.31 | |||
Description
General part information
NFE31ZT Series
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 2200pF 6 A 1206 (3216 Metric), 3 PC Pad
Documents
Technical documentation and resources
