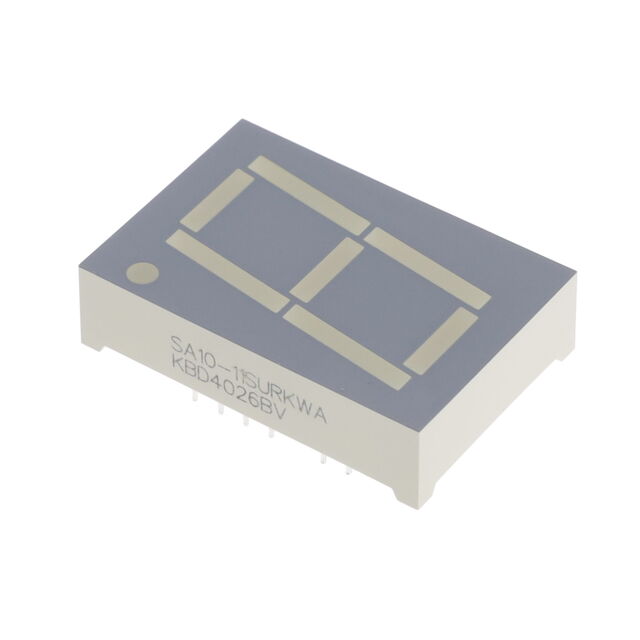

SA10-11SURKWA

Active

Kingbright

DISPLAY 7SEG 1.02" SGL RED 14DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SA10-11SURKWA

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	1.02 in
Digit/Alpha Size	26 mm
Display Type	7-Segment
Millicandela Rating	260 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	14-DIP
Package / Case	15.24 mm
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	1.295 "
Size / Dimension [x]	32.9 mm
Size / Dimension [y]	0.886 "
Size / Dimension [y]	22.5 mm
Size / Dimension [z]	0.335 "
Size / Dimension [z]	8.5 mm
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Peak	645 nm

SA10-11 Series

Part	Package / Case	Package / Case	Package / Case	Number of Characters [custom]	Color	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Wavelength - Peak	Common Pin	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power Dissipation (Max) [Max]	Current - Test	Display Type
Kingbright SA10-11SYKWA	0.6 in	14-DIP	15.24 mm	1	Yellow	1.02 in	26 mm	400 mcd	590 nm	Common Anode	2 V	0.886 "	1.295 "	0.335 "	22.5 mm	8.5 mm	32.9 mm	75 mw	20 mA	7-Segment
Kingbright SA10-11SURKWA	0.6 in	14-DIP	15.24 mm	1	Red	1.02 in	26 mm	260 mcd	645 nm	Common Anode	1.95 V	0.886 "	1.295 "	0.335 "	22.5 mm	8.5 mm	32.9 mm	75 mw	20 mA	7-Segment
Kingbright SA10-11SRWA	0.6 in	14-DIP	15.24 mm	1	Red	1.02 in	26 mm	120 mcd	660 nm	Common Anode	3.7 V	0.886 "	1.295 "	0.335 "	22.5 mm	8.5 mm	32.9 mm	150 mW	20 mA	7-Segment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.79
		15	$ 3.39
		105	$ 2.77
		510	$ 2.34
		1005	$ 2.14
		2010	$ 2.06

Description

General part information

SA10-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 1.295" H x 0.886" W x 0.335" D (32.90mm x 22.50mm x 8.50mm) 14-DIP (0.600", 15.24mm)
