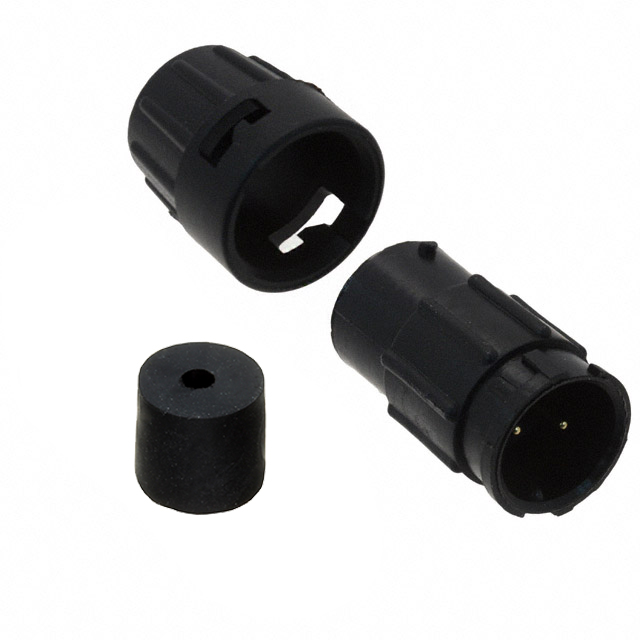

8382-2PG-315

Active

Conxall/Switchcraft

CONN RCPT MALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	8382-2PG-315

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [custom]	0.17 in, 0.15 in
Cable Opening [custom]	3.81 mm, 4.32 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

Part	Fastening Type	Cable Opening [custom]	Cable Opening [custom]	Features	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Orientation	Mounting Type	Shielding	Contact Finish - Mating	Applications	Current Rating (Amps)	Voltage Rating	Ingress Protection	Contact Material	Connector Type	Primary Material	Number of Positions
Conxall/Switchcraft 8382-2PG-315	Bayonet Lock	0.15 in 0.17 in	3.81 mm 4.32 mm	Backshell	Nylon Polyamide (PA)	-40 °C	115 °C	Black	Keyed	Free Hanging (In-Line)	Unshielded	Gold	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	600 V	Weathertight	Brass	Male Pins Receptacle	Plastic	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder Cup
