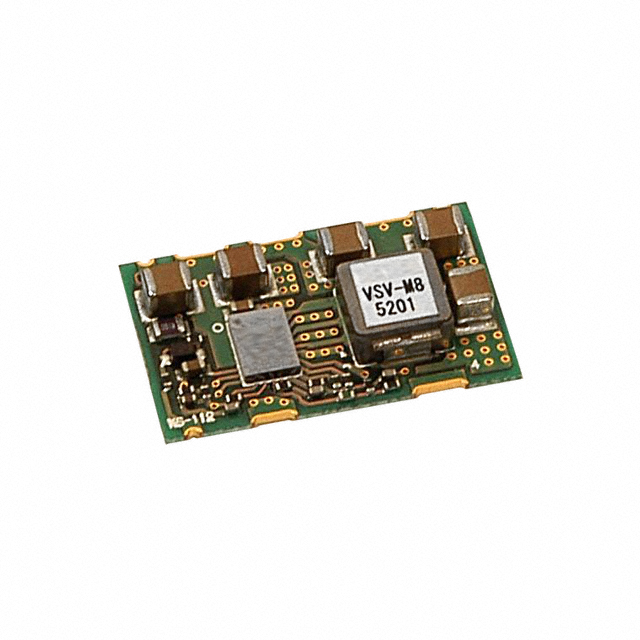

VSV-3.3S8ROM
ActiveVolgen + Furuno
DC DC CONVERTER 3.3V 25W
Deep-Dive with AI
Search across all available documentation for this part.
VSV-3.3S8ROM
ActiveVolgen + Furuno
DC DC CONVERTER 3.3V 25W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VSV-3.3S8ROM |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 8 A |
| Efficiency | 96 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD Module |
| Power (Watts) | 25 W |
| Size / Dimension [x] | 0.94 in |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [y] | 15 mm |
| Size / Dimension [y] | 0.59 in |
| Size / Dimension [z] | 0.16 in |
| Size / Dimension [z] | 4 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 70 | $ 48.46 | |
Description
General part information
VSV-3.3 Series
Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 8A 3V - 5.5V Input
Documents
Technical documentation and resources
No documents available
