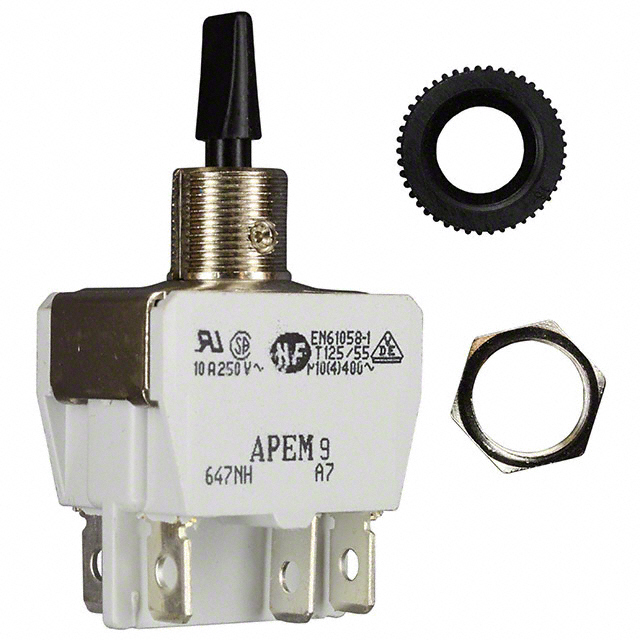

TOGGLE SWITCH, ON-OFF-ON, DPST, NON ILLUMINATED, 600NH SERIES, 15 A, PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

647NH/2

Active

APEM

TOGGLE SWITCH, ON-OFF-ON, DPST, NON ILLUMINATED, 600NH SERIES, 15 A, PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	647NH/2

Actuator Length [x]	13.5 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Flatted
Bushing Thread	M12
Bushing Thread	0.75
Circuit	DPDT
Current Rating (Amps)	10 A
Electrical Life	10000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V

647NH Series

Part	Actuator Material	Switch Function	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Illumination	Electrical Life	Voltage Rating - AC	Current Rating (Amps)	Actuator Type	Termination Style	Bushing Thread	Bushing Thread	Panel Cutout Dimensions [diameter]
APEM 647NH/2	Nylon Polyamide (PA)	Mom-Off-Mom	DPDT	55 °C	-20 C	13.5 mm	Non-Illuminated	10000 Cycles	250 V	10 A	Flatted	Quick Connect - 0.250" (6.3mm)	M12	0.75	12.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 19.53
Newark	Each	25	$ 19.09
		50	$ 18.04
		100	$ 16.72
		250	$ 16.46

Description

General part information

647NH Series

The 600NH series high-amperage Toggle Switch with insulated lever. It is available in 1, 2 and 3 poles in numerous configurations, solder lug/quick connect or screw terminals. The contacts are resistance-welded to the terminal for increased mechanical strength. The terminal and contact support are manufactured from a single piece of metal. The contacts are resistance-welded to the terminal for increased mechanical strength. These switches are suitable for motor loads and power applications up to 15A 250VAC or 10A 400VAC.
