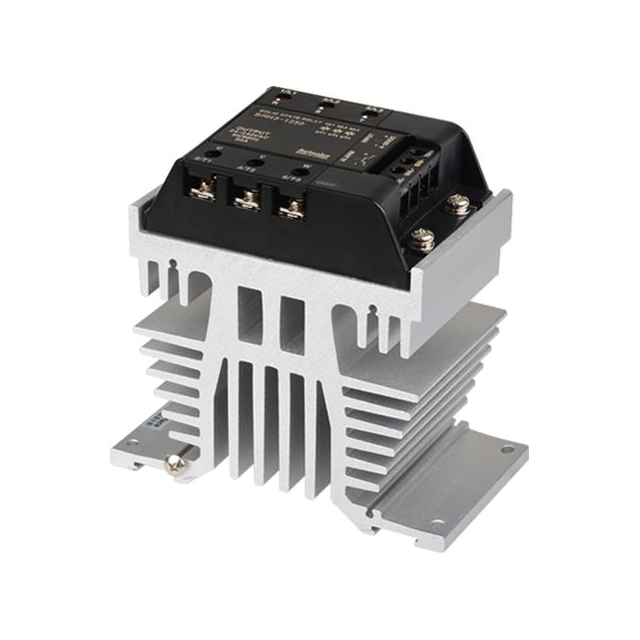

SRH3-1250

Active

AUTONICS

24V~240V 50A 3 FORM A (3PST-NO) SOLID STATE RELAYS (TRIAC OUTPUT) ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRH3-1250

Active

AUTONICS

24V~240V 50A 3 FORM A (3PST-NO) SOLID STATE RELAYS (TRIAC OUTPUT) ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRH3-1250

Circuit	3PST-NO (3 Form A)
Load Current	50 A
Mounting Type	Chassis Mount or Panel Mount
Output Type	AC, Zero Cross
Package / Case	SSR with Integrated Heat Sink
Supplier Device Package	Module
Termination Style	Screw Terminal
Voltage - Input [Max]	30 V
Voltage - Input [Min]	4 V
Voltage - Load [Max]	240 V
Voltage - Load [Min]	24 V

srh2 Series

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features	Termination Style	Type	Measuring Range	Measuring Type	Display Characters - Height [y]	Display Characters - Height [y]	Display Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Characters Per Row	Output Type	Package / Case	Mounting Type	Circuit	Load Current	Voltage - Input [Max]	Voltage - Input [Min]	Supplier Device Package	Voltage - Load [Min]	Voltage - Load [Max]	Function	Contact Rating @ Voltage	Delay Time [Max]	Delay Time [Min]	Voltage - Supply	Timing Adjustment Method
AUTONICS MP5W-41	92 mm	45 mm	Pulse Meter	Screw Terminal	Process Meter	Multiple	Process	0.315 in	8 mm	LED - Red Characters	100 VAC	240 VAC	5	Relay (3)
AUTONICS SR2-4230				Screw Terminal										AC Zero Cross	Module	Chassis Mount or Panel Mount	3PST-NO (3 Form A)	30 A	240 VAC	90 VAC	Module	24 V	240 V
AUTONICS AT8N-1				Plug In 8 Pin (Octal)													DPDT (2 Form C) SPDT (1 Form C)							Programmable (Multi-Function)	5 A 250 VAC	100 Hrs	0.05 Sec	12 VDC	Hand Dial
AUTONICS MP5Y-4N	68 mm	31.5 mm	Pulse Meter	Screw Terminal	Process Meter	Multiple	Process	0.315 in	8 mm	LED - Red Characters	100 VAC	240 VAC	5
AUTONICS LE3SB				Plug In 8 Pin (Octal)							24 VAC	240 VAC												Programmable (Multi-Function)	3 A 250 VAC	9990 Hrs	0.01 Sec		Up/Down Digit Keys
AUTONICS MP5W-4N	92 mm	45 mm	Pulse Meter	Screw Terminal	Process Meter	Multiple	Process	0.315 in	8 mm	LED - Red Characters	100 VAC	240 VAC	5
AUTONICS SRH3-4475				Screw Terminal										AC Zero Cross	SSR with Integrated Heat Sink	Chassis Mount or Panel Mount	3PST-NO (3 Form A)	75 A	240 VAC	90 VAC	Module	48 V	480 V
AUTONICS SRH3-1250				Screw Terminal										AC Zero Cross	SSR with Integrated Heat Sink	Chassis Mount or Panel Mount	3PST-NO (3 Form A)	50 A	30 V	4 V	Module	24 V	240 V
AUTONICS MP5W-44	92 mm	45 mm	Pulse Meter	Screw Terminal	Process Meter	Multiple	Process	0.315 in	8 mm	LED - Red Characters	100 VAC	240 VAC	5	PV Output Solid State (5)
AUTONICS MP5Y-44	68 mm	31.5 mm	Pulse Meter	Screw Terminal	Process Meter	Multiple	Process	0.315 in	8 mm	LED - Red Characters	100 VAC	240 VAC	5	PV Output

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 177.00
LCSC	Piece	1	$ 208.55
		200	$ 195.87
		500	$ 189.32
		1000	$ 186.09

Description

General part information

srh2 Series

Solid State 3PST-NO (3 Form A) SSR with Integrated Heat Sink
