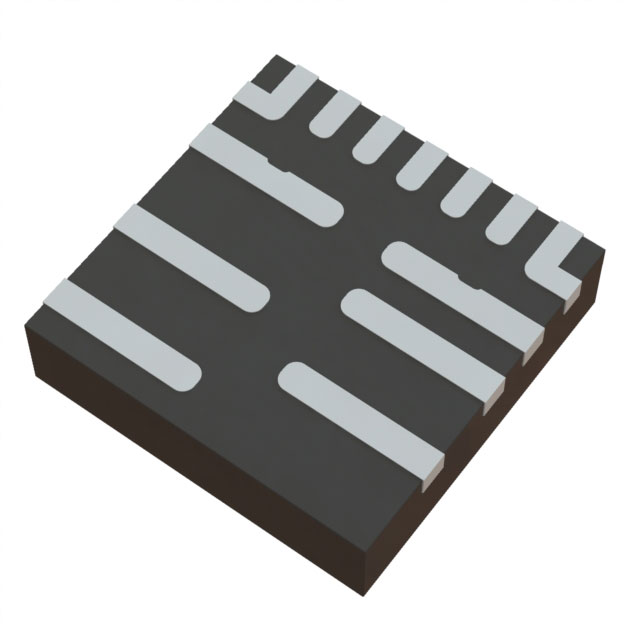

MP86933GQT-P

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC HALF BRIDGE DRIVER 12A 13TQFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC HALF BRIDGE DRIVER 12A 13TQFN

Technical Specifications

Parameters and characteristics for this part

Specification	MP86933GQT-P

Applications	General Purpose
Current - Output / Channel	12 A
Fault Protection	Over Temperature, Current Limiting
Features	Bootstrap Circuit, Diode Emulation
Interface	Logic, Analog, PWM
Load Type	Capacitive, Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	13-PowerWFQFN
Supplier Device Package	13-TQFN (3x3)
Technology	DrMOS
Voltage - Load [Max]	16 V
Voltage - Load [Min]	4.5 V
Voltage - Supply [Max]	16 V
Voltage - Supply [Min]	4.5 V

Part	Applications	Interface	Mounting Type	Supplier Device Package	Voltage - Load [Max]	Voltage - Load [Min]	Load Type	Features	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output / Channel	Package / Case	Fault Protection
MONOLITHIC POWER SYSTEMS (MPS) MP86933GQT-Z	General Purpose	Analog Logic PWM	Surface Mount	13-TQFN (3x3)	16 V	4.5 V	Capacitive Inductive	Bootstrap Circuit Diode Emulation	DrMOS	4.5 V	16 V	-40 °C	125 ¯C	12 A	13-PowerWFQFN	Current Limiting Over Temperature
MONOLITHIC POWER SYSTEMS (MPS) MP86933GQT-P	General Purpose	Analog Logic PWM	Surface Mount	13-TQFN (3x3)	16 V	4.5 V	Capacitive Inductive	Bootstrap Circuit Diode Emulation	DrMOS	4.5 V	16 V	-40 °C	125 ¯C	12 A	13-PowerWFQFN	Current Limiting Over Temperature

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Half Bridge Driver General Purpose DrMOS 13-TQFN (3x3)
