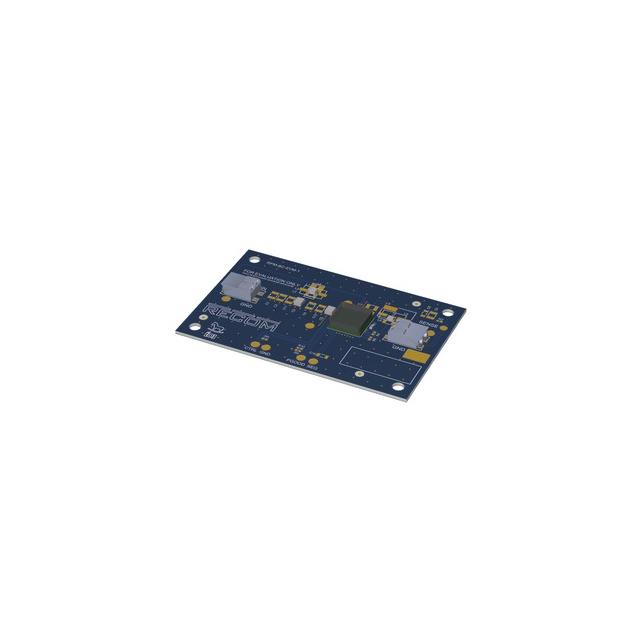

RPMH5.0-1.5-EVM-1

Active

RECOM Power

RPMH5.0-1.5 EVALUATION MODULE

Search across all available documentation for this part.

Active

RECOM Power

RPMH5.0-1.5 EVALUATION MODULE

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Features	Number of Outputs	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1	Applications	Mounting Type	Type	Package / Case	Efficiency	Supplied Contents	Current - Output	Main Purpose	Voltage - Output	Outputs and Type	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Board Type
RECOM Power RPMH5.0-1.5-CT	7 V	-40 °C	100 °C	1.5 A	Adjustable Output Remote Sense	1	60 V	0.48 in	0.15 "	12.2 mm	0.48 in	3.8 mm	12.2 mm	5 V	ITE (Commercial)	Surface Mount	Non-Isolated PoL Module	25-BLGA Module	80 %
RECOM Power RPMH5.0-1.5	7 V	-40 °C	100 °C	1.5 A	Adjustable Output Remote Sense	1	60 V	0.48 in	0.15 "	12.2 mm	0.48 in	3.8 mm	12.2 mm	5 V	ITE (Commercial)	Surface Mount	Non-Isolated PoL Module	25-BLGA Module	80 %
RECOM Power RPMH5.0-1.5-EVM-1																				Board(s)	1.5 A	DC/DC Step Down	5 V	Non-Isolated	1	60 V	7 V	Fully Populated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

- DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
