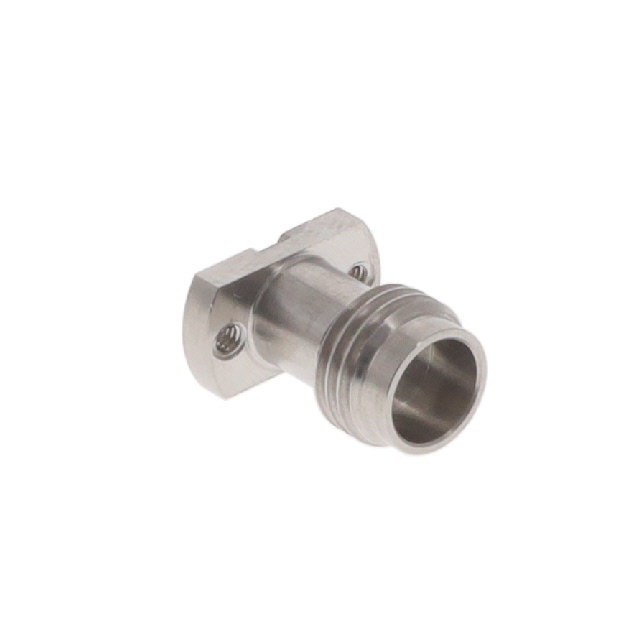

08K722-40MS3

Active

Rosenberger

1.85MM VERTICAL JACK PCB 26.5GHZ

Search across all available documentation for this part.

Active

Rosenberger

1.85MM VERTICAL JACK PCB 26.5GHZ

Technical Specifications

Parameters and characteristics for this part

Specification	08K722-40MS3

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.85 mm
Connector Type	Female Socket, Jack
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	70 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Shield Termination	Screw
Voltage Rating	150 VDC

Part	Number of Ports	Housing Color	Frequency - Max [Max]	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Body Material	Center Contact Material	Mating Cycles	Voltage Rating	Center Contact Plating	Connector Style	Shield Termination	Dielectric Material	Connector Type	Impedance
Rosenberger 08K722-40MS3	1	Silver	70 GHz	Flange	0 °C	85 °C	Compression	Stainless Steel	Beryllium Copper	500	150 VDC	Gold	1.85 mm	Screw	Polytetrafluoroethylene (PTFE)	Female Socket Jack	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 71.76

General part information

1.85mm Connector Jack, Female Socket 50 Ohms Panel Mount Compression
