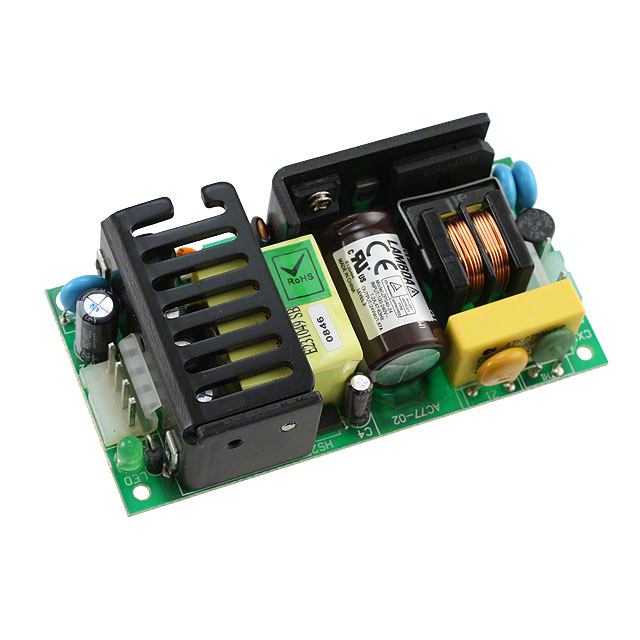

ZPS40-3R3

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, 20 W, 90V AC TO 264V AC, FIXED, 3.3 V

Search across all available documentation for this part.

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, 20 W, 90V AC TO 264V AC, FIXED, 3.3 V

Technical Specifications

Parameters and characteristics for this part

Specification	ZPS40-3R3

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	6 A
Efficiency	74 %
Features	Universal Input, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	40 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	30.5 mm
Size / Dimension [z]	1.2 "
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	3.3 V

Part	Features	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Current - Output 1	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Minimum Load Required	Voltage - Isolation	Power (Watts)	Applications	Mounting Type
TDK-LAMBDA ZPS40-3R3	DC Input Capable Universal Input	74 %	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	Open Frame	6 A	3.3 V	90 VAC	264 VAC	1	70 °C	0 °C	CE		3000 V	40 W	ITE (Commercial)	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 3.3V 90 ~ 264 VAC Input
