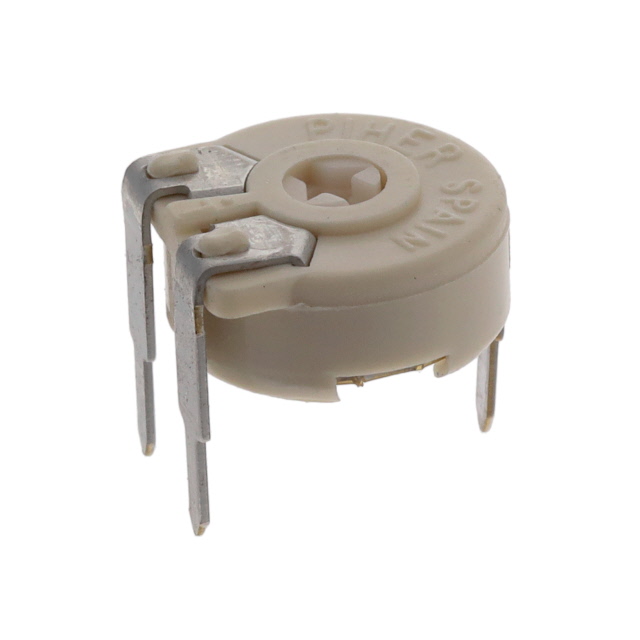

PTC10LV10-105A2020

Active

Amphenol Piher Sensing Systems

TRIMMER 1M OHM 0.33W PC PIN TOP

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

TRIMMER 1M OHM 0.33W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Tolerance	Mounting Type	Number of Turns	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension	Adjustment Type	Resistive Material	Termination Style	Resistance	Temperature Coefficient	Power (Watts)
Amphenol Piher Sensing Systems PTC10LV10-503A1010	10 %	Through Hole	1	0.406 in	10.3 mm	Round	Top Adjustment	Cermet	PC Pins	50 kOhms	100 ppm/°C	0.33 W
Amphenol Piher Sensing Systems PTC10LV10-253A2020	20 %	Through Hole	1	0.406 in	10.3 mm	Round	Top Adjustment	Cermet	PC Pins	25 kOhms	100 ppm/°C	0.33 W
Amphenol Piher Sensing Systems PTC10LV10-104A2020	20 %	Through Hole	1	0.406 in	10.3 mm	Round	Top Adjustment	Cermet	PC Pins	100 kOhms	100 ppm/°C	0.33 W
Amphenol Piher Sensing Systems PTC10LV10-502A2020	20 %	Through Hole	1	0.406 in	10.3 mm	Round	Top Adjustment	Cermet	PC Pins	5 kOhms	100 ppm/°C	0.33 W
Amphenol Piher Sensing Systems PTC10LV10-105A2020	20 %	Through Hole	1	0.406 in	10.3 mm	Round	Top Adjustment	Cermet	PC Pins	1 MOhms	100 ppm/°C	0.33 W
Amphenol Piher Sensing Systems PTC10LV10-202A2020	20 %	Through Hole	1	0.406 in	10.3 mm	Round	Top Adjustment	Cermet	PC Pins	2 kOhms	100 ppm/°C	0.33 W
Amphenol Piher Sensing Systems PTC10LV10-201A2020	20 %	Through Hole	1	0.406 in	10.3 mm	Round	Top Adjustment	Cermet	PC Pins	200 Ohms	100 ppm/°C	0.33 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 MOhms 0.33W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
