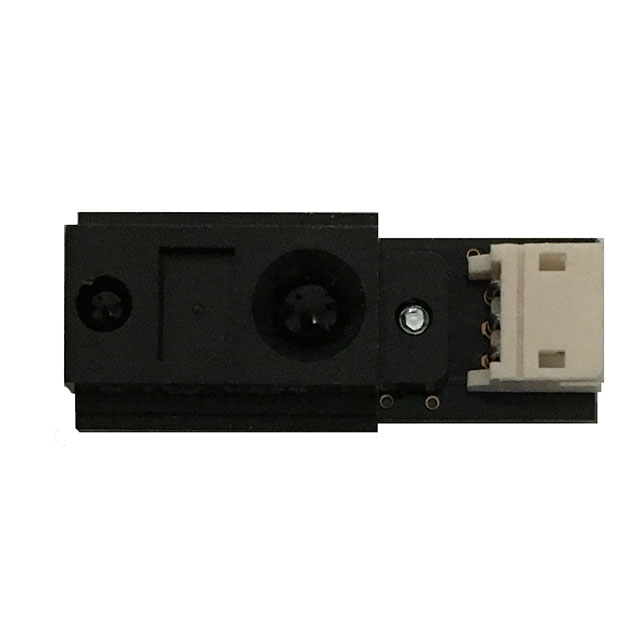

GP2Y0AF15X

Active

SHARP/Socle Technology

SENSOR OPTICAL 1.5-15CM ANALOG

Search across all available documentation for this part.

Active

SHARP/Socle Technology

SENSOR OPTICAL 1.5-15CM ANALOG

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Distance [Min]	Sensing Distance [Max]	Output Type	Voltage - Output Difference (Typ) @ Distance	Current - Supply	Voltage - Output (Typ) @ Distance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Output Difference (Typ) @ Distance [Min] [custom]	Voltage - Output Difference (Typ) @ Distance [Max] [custom]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance
SHARP/Socle Technology GP2Y0A51SK0F	2 cm	15 cm	Analog	1.65 V	22 mA	400 mV	-10 °C	60 °C	4.5 V	5.5 V
SHARP/Socle Technology GP2Y0E03	4 cm	500 mm	Analog I2C	1.65 V	36 mA	50 cm 550 mV	-10 °C	60 °C	2.7 V	5.5 V
SHARP/Socle Technology GP2Y0A710K0F	39.37 " 100 cm	216.54 in 550 cm	Analog	1.55 V	50 mA	2.5 V 100 cm	-10 °C	60 °C	4.5 V	5.5 V
SHARP/Socle Technology GP2Y0A21YK0F	10 cm	80 cm	Analog	1.9 V	40 mA	400 mV	-10 °C	60 °C	4.5 V	5.5 V	10 cm	80 cm
SHARP/Socle Technology GP2Y0AF15Y	0.59 "	5.91 "	Analog		30 mA	400 mV	-10 °C	60 °C	4.5 V	5.5 V			15 cm	20 mm
SHARP/Socle Technology GP2Y0AF15X	0.59 "	5.91 "	Analog		30 mA	400 mV	-10 °C	60 °C	4.5 V	5.5 V			15 cm	1.5 cm
SHARP/Socle Technology GP2Y0D02YK0F					50 mA		-10 °C	60 °C	4.5 V	5.5 V					80 cm
SHARP/Socle Technology GP2Y0D21YK0F					40 mA		-10 °C	60 °C	4.5 V	5.5 V					24 cm
SHARP/Socle Technology GP2Y0E02B	4 cm	500 mm	I2C		36 mA		-10 °C	60 °C	2.7 V	3.3 V
SHARP/Socle Technology GP2Y0D417KBF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor 0.59" ~ 5.91" (1.5 ~ 15cm) Analog Output
