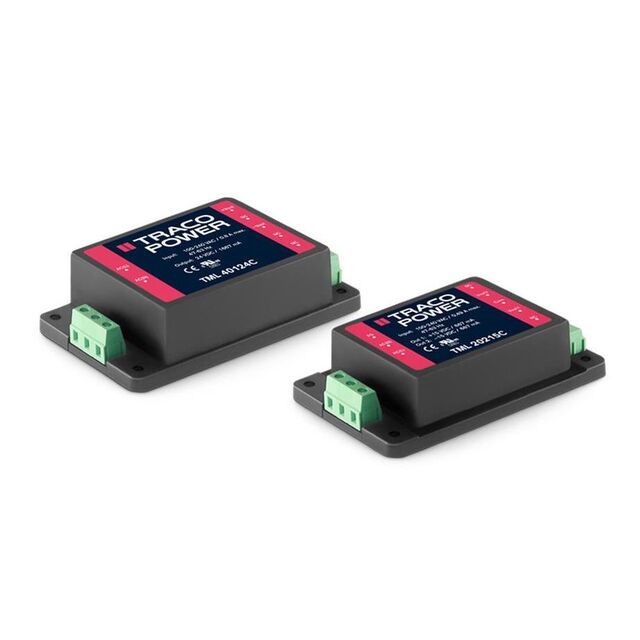

TML 40112C

Active

Traco Power

AC/DC CONVERTER 12V 40W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 12V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	TML 40112C

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	3.333 A
Efficiency	84 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	40 W
Size / Dimension [x]	4.41 "
Size / Dimension [x]	112 mm
Size / Dimension [y]	2.5 in
Size / Dimension [y]	63.5 mm
Size / Dimension [z]	32.5 mm
Size / Dimension [z]	1.28 in
Type	Enclosed
Voltage - Input [Max]	375 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 100 V
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Mounting Type	Power (Watts)	Features	Applications	Efficiency	Voltage - Isolation	Voltage - Output 1	Type	Number of Outputs	Current - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Minimum Load Required	Voltage - Input [Min]	Voltage - Input [Max]
Traco Power TML 40112C	Chassis Mount	40 W	Adjustable Output Universal Input	ITE (Commercial)	84 %	3000 V	12 V	Enclosed	1	3.333 A	32.5 mm	1.28 in	2.5 in	4.41 "	63.5 mm	112 mm	CB CE cURus	60 °C	-40 °C		90 VAC 100 V	264 VAC 375 VDC
