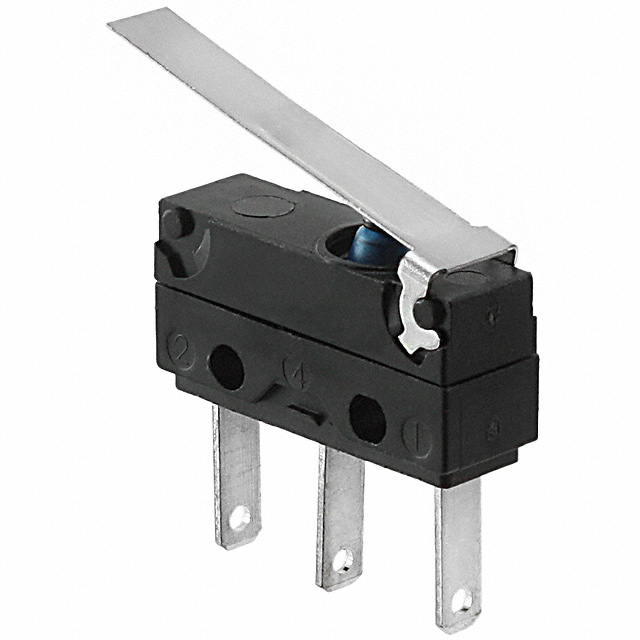

83181061
ActiveCrouzet
SWITCH SNAP ACTION SPDT 6A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 83181061 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 6 A |
| Differential Travel | 0.016 " |
| Differential Travel | 0.4 mm |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 2000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 64 gf |
| Operating Position [custom] | 0.437 " |
| Operating Position [custom] | 11.1 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.094 in |
| Overtravel | 2.4 mm |
| Release Force | 20 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1104 | $ 7.86 | |
Description
General part information
831810 Series
Switch SPDT Chassis Mount
