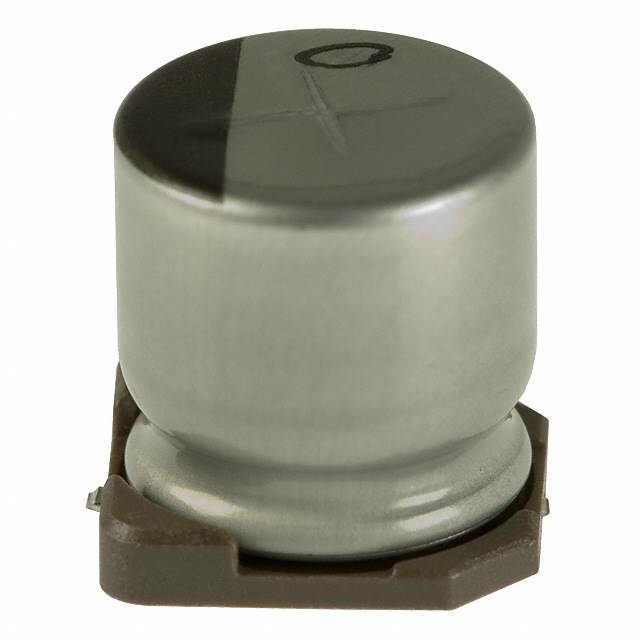

UUD0J152MNL1GS

Active

NICHICON

SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 1500 ΜF, 6.3 V, 5000 HOURS @ 105°C, POLAR

Search across all available documentation for this part.

Active

NICHICON

SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 1500 ΜF, 6.3 V, 5000 HOURS @ 105°C, POLAR

Technical Specifications

Parameters and characteristics for this part

Specification	UUD0J152MNL1GS

Applications	Automotive
Capacitance	1.5 mF
Height - Seated (Max) [Max]	0.413 in
Height - Seated (Max) [Max]	10.5 mm
Lifetime @ Temp.	5000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Polarization	Polar
Ratings	AEC-Q200
Ripple Current @ Low Frequency	335 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Surface Mount Land Size [x]	0.406 in
Surface Mount Land Size [x]	10.3 mm
Surface Mount Land Size [y]	10.3 mm
Surface Mount Land Size [y]	0.406 "
Tolerance	20 %
Voltage - Rated	6.3 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Polarization	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Mounting Type	Ripple Current @ Low Frequency	Package / Case	Voltage - Rated	Tolerance	Lifetime @ Temp.
NICHICON UUD0J152MNL1GS	10 mm	0.394 in	0.413 in	10.5 mm	1.5 mF	Polar	Automotive	105 ░C	-55 °C	AEC-Q200	10.3 mm	0.406 in	10.3 mm	0.406 "	Surface Mount	335 mA	Radial Can - SMD	6.3 V	20 %	5000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1500 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
