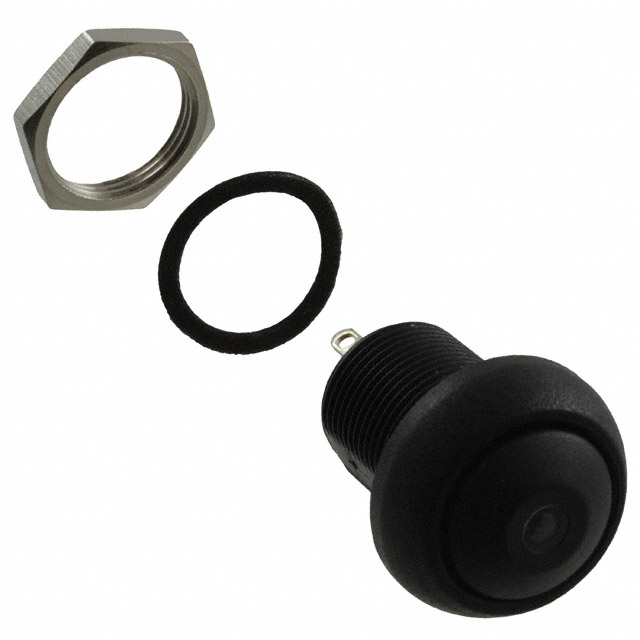

ILR3SAD2

Active

APEM

SWITCH PUSHBUTTON SPST-NO 2A 24V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSHBUTTON SPST-NO 2A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	ILR3SAD2

Actuator Marking	No Marking
Actuator Type	Domed, Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - DC	24 V

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Switch Function	Ingress Protection	Mounting Type	Current Rating (Amps)	Mechanical Life	Termination Style	Actuator Type	Circuit	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Type	Color - Actuator/Cap	Electrical Life
APEM ILR3SAD2	Epoxy Sealed Terminals	85 °C	-40 °C	No Marking	Off-Mom	IP67 - Dust Tight Waterproof	Panel Mount Front	2 A	1000000 Cycles	Solder Lug	Button Domed Round	SPST-NO	13.6 mm	24 V	Standard	Black	200000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
