IS15BBFP4RGB

Active

NKK Switches

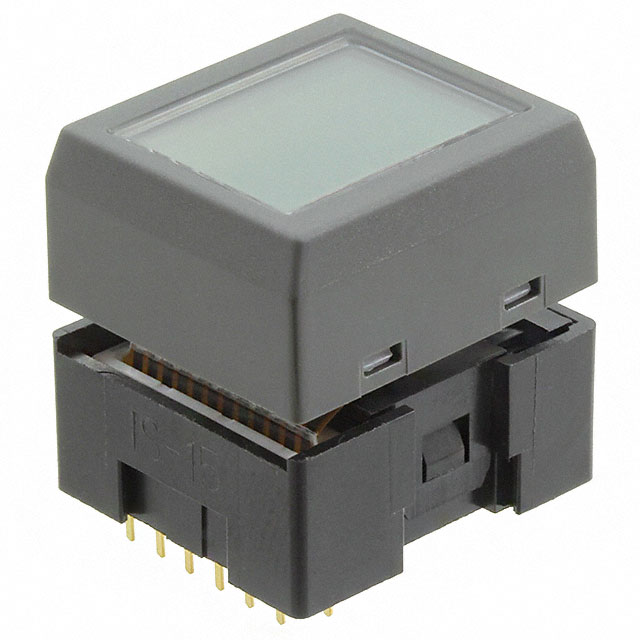

PROGRAMMABLE DISPLAY SWITCH, SMARTSWITCH IS SERIES, SPST-NO, THROUGH HOLE, 100 MA, 12 V, LCD

Search across all available documentation for this part.

Active

NKK Switches

PROGRAMMABLE DISPLAY SWITCH, SMARTSWITCH IS SERIES, SPST-NO, THROUGH HOLE, 100 MA, 12 V, LCD

Technical Specifications

Parameters and characteristics for this part

Specification	IS15BBFP4RGB

Circuit	SPST-NO
Contact Rating @ Voltage	0.1 A, 12 VDC
Display Mode	Black and White, FSTN Positive
Face Size [x]	23.13 mm
Face Size [y]	20.59 mm
LED Color	Blue, Green, Red
LED Forward Voltage	2.8, 2.8 VDC, 2
Mounting Type	Through Hole
Operating Force	224 gf
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Pixel Format [x]	36
Pixel Format [y]	24
Style	Standard
Supply Voltage [Max]	5.5 V
Supply Voltage [Min]	3 V
Switch Function	Off-Mom
Termination Style	PC Pin
Travel Range	1.8 mm
Type	LCD, Pushbutton
Viewing Area [x]	17 mm
Viewing Area [y]	13 mm

Part	Travel Range	Display Mode	LED Color	Face Size [y]	Face Size [x]	Supply Voltage [Max]	Supply Voltage [Min]	Switch Function	LED Forward Voltage	Circuit	Contact Rating @ Voltage	Pixel Format [y]	Pixel Format [x]	Type	Operating Force	Mounting Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Viewing Area [y]	Viewing Area [x]
NKK Switches IS15BBFP4RGB	1.8 mm	Black and White FSTN Positive	Blue Green Red	20.59 mm	23.13 mm	5.5 V	3 V	Off-Mom	2 2.8 2.8 VDC	SPST-NO	0.1 A 12 VDC	24	36	LCD Pushbutton	224 gf	Through Hole	Standard	-20 C	60 °C	PC Pin	13 mm	17 mm
