1078683

Active

Phoenix Contact

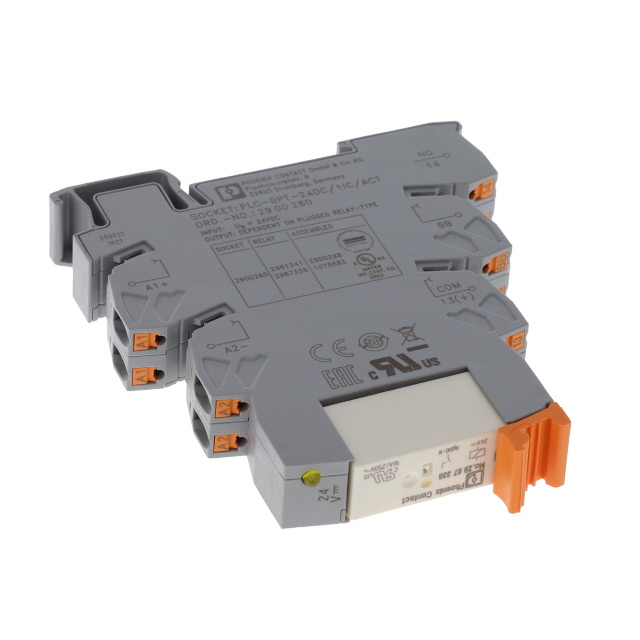

INDUSTRIAL RELAYS PLC-RPT- 24DC/ 1ICT/ACT

Search across all available documentation for this part.

Active

Phoenix Contact

INDUSTRIAL RELAYS PLC-RPT- 24DC/ 1ICT/ACT

Technical Specifications

Parameters and characteristics for this part

Specification	1078683

Approval Agency	UKCA, CE
Coil Current	18 mA
Coil Resistance	1333 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A
Features	Socket Included, Diode, Lighted Indicator
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Spring Terminal

Part	Contact Material	Relay Type	Coil Type	Operate Time	Approval Agency	Coil Current	Termination Style	Coil Voltage	Contact Rating (Current)	Switching Voltage	Features	Release Time	Coil Resistance	Contact Form	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Phoenix Contact 1078683	Silver Tin Oxide (AgSnO)	General Purpose	Non Latching	8 ms	CE UKCA	18 mA	Spring Terminal	24 VDC	6 A	250 VAC 250 VDC	Diode Lighted Indicator Socket Included	10 ms	1333 Ohms	SPST-NO (1 Form A)	DIN Rail	-40 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil DIN Rail
