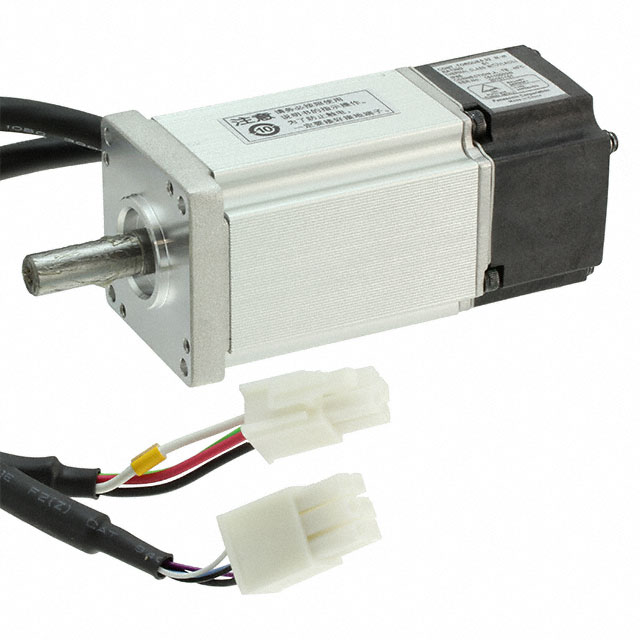

MUMA011P1S

LTB

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 100V

Search across all available documentation for this part.

LTB

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 100V

Technical Specifications

Parameters and characteristics for this part

Specification	MUMA011P1S

Approval Agency	TUV, CE, CSA, UL, cULus
Diameter - Shaft [diameter]	0.315 in
Diameter - Shaft [diameter]	8 mm
Encoder Type	Incremental
Features	Key
Function	Servomotor
Length - Shaft and Bearing [x]	24 mm
Length - Shaft and Bearing [x]	0.945 in
Mounting Hole Spacing	1.89 "
Mounting Hole Spacing	48 mm
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power - Rated	100 W
RPM	3000 RPM
Size / Dimension [x]	42 mm
Size / Dimension [x]	1.654 in
Size / Dimension [y]	1.654 "
Size / Dimension [y]	42 mm
Termination Style	Cable with Connector
Torque - Max Momentary (oz-in / mNm)	950 mNm
Torque - Max Momentary (oz-in / mNm)	134.5 oz-in
Torque - Rated (oz-in / mNm)	320 mNm
Torque - Rated (oz-in / mNm)	45.32 oz-in
Type	AC Motor
Voltage - Rated	100 VAC
Weight	1.1 lbs
Weight	499 g

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Function	Termination Style	Mounting Hole Spacing	Mounting Hole Spacing	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Encoder Type	Voltage - Rated	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Weight	Weight	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Features	Power - Rated	Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]
Panasonic Industrial Automation Sales MUMA011P1S	42 mm	1.654 "	1.654 in	42 mm	Servomotor	Cable with Connector	1.89 "	48 mm	0.315 in	8 mm	Incremental	100 VAC	320 mNm	45.32 oz-in	1.1 lbs	499 g	950 mNm	134.5 oz-in	Key	100 W	AC Motor	CE CSA cULus TUV UL	40 °C	0 °C	3000 RPM	24 mm	0.945 in
Panasonic Industrial Automation Sales MUMA011P1T	42 mm	1.654 "	1.654 in	42 mm	Servomotor	Cable with Connector	1.89 "	48 mm	0.315 in	8 mm	Incremental	100 VAC	320 mNm	45.32 oz-in	1.5 lb	680.4 g	950 mNm	134.5 oz-in	Brake Key	100 W	AC Motor	CE CSA cULus TUV UL	40 °C	0 °C	3000 RPM	24 mm	0.945 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC Motor Servomotor 3000 RPM 100W Incremental 100VAC
