ALPHA11/1M/SMAM/S/S/20
ActiveSiretta Ltd

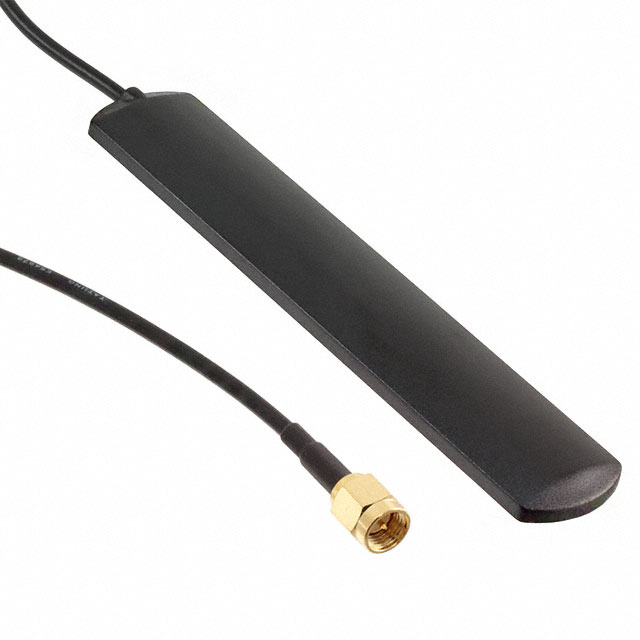

GPRS, 2G, 3G, ISM FLAT BLADE ANTENNA 1M RG174 SMA MALE
Deep-Dive with AI
Search across all available documentation for this part.
ALPHA11/1M/SMAM/S/S/20
ActiveSiretta Ltd
GPRS, 2G, 3G, ISM FLAT BLADE ANTENNA 1M RG174 SMA MALE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALPHA11/1M/SMAM/S/S/20 |
|---|---|
| Antenna Type | Blade |
| Applications | UMTS, GSM, GPRS |
| Frequency (Center/Band) | 900 MHz, 850 MHz, 1.9 GHz, 1.8 GHz |
| Gain | 2.5 dBi |
| Height (Max) | 4 mm |
| Height (Max) [Max] [z] | 0.157 in |
| Mounting Type | Adhesive |
| Number of Bands | 4 |
| RF Family/Standard | Cellular |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.34 | |
| 10 | $ 11.35 | |||
| 25 | $ 10.87 | |||
| 100 | $ 9.58 | |||
| 250 | $ 9.11 | |||
| 500 | $ 8.52 | |||
| 1000 | $ 7.82 | |||
Description
General part information
ALPHA11 Series
RF ANTENNA GPRS, GSM, UMTS Blade SMA Male Adhesive
