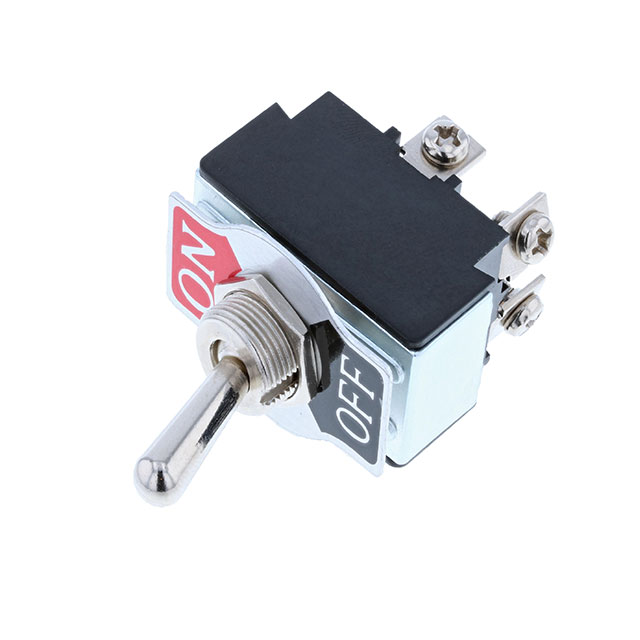

TB2-2A-DC-4

Active

Switch Components

24V DOUBLE KNIFE SINGLE THROW STRAIGHT TOGGLE SWITCHES ROHS

Search across all available documentation for this part.

Active

Switch Components

24V DOUBLE KNIFE SINGLE THROW STRAIGHT TOGGLE SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	TB2-2A-DC-4

Actuator Length [x]	17.7 mm
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	0.75
Circuit	DPST
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - DC	12 V

Part	Actuator Type	Bushing Thread	Bushing Thread	Actuator Length [x]	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Illumination	Current Rating (Amps)	Termination Style	Circuit	Switch Function	Electrical Life
Switch Components TB2-2A-DC-4	Standard Round	M12	0.75	17.7 mm	12 V	12.2 mm	Non-Illuminated	20 A	Screw Terminal	DPST	On-Off	6000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPST Panel Mount
