FI3D048AK

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FI3D048AK

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	Armored
Features	48 Fibers
Jacket (Insulation) Diameter [diameter]	0.936 "
Jacket (Insulation) Diameter [diameter]	23.77 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Aqua
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Ratings	OFCP
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Multimode

Part	Features	Features	Jacket Color	Jacket (Insulation) Material	Core Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Style	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Type	Tensile Strength	Cladding Diameter [diameter]	Ratings
Belden Inc. FI3D048AK	Armored	48 Fibers	Aqua	Poly-Vinyl Chloride (PVC)	50 µm	70 °C	0 °C	Multiple Fibers	0.936 "	23.77 mm	Multimode	40.8 kg	125 µm	OFCP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 11.38

General part information

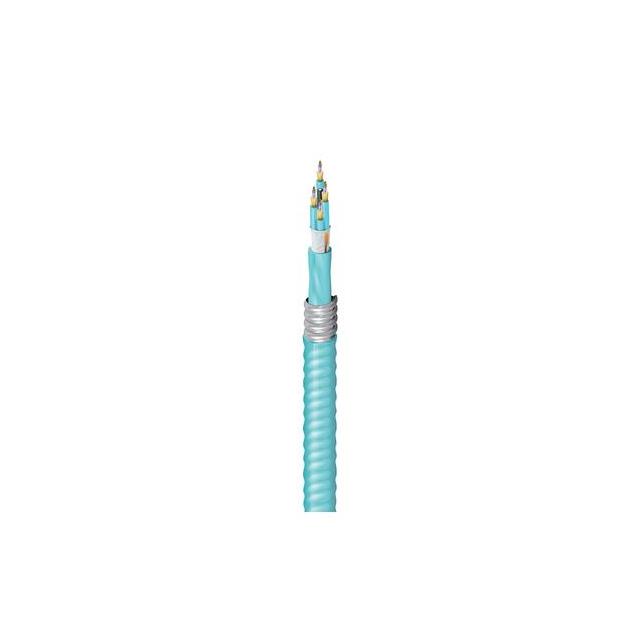

Fiber Optic Cable Aqua Multimode 125µm

Technical documentation and resources
