AK5703EN
ObsoleteAsahi Kasei Microdevices Corporation

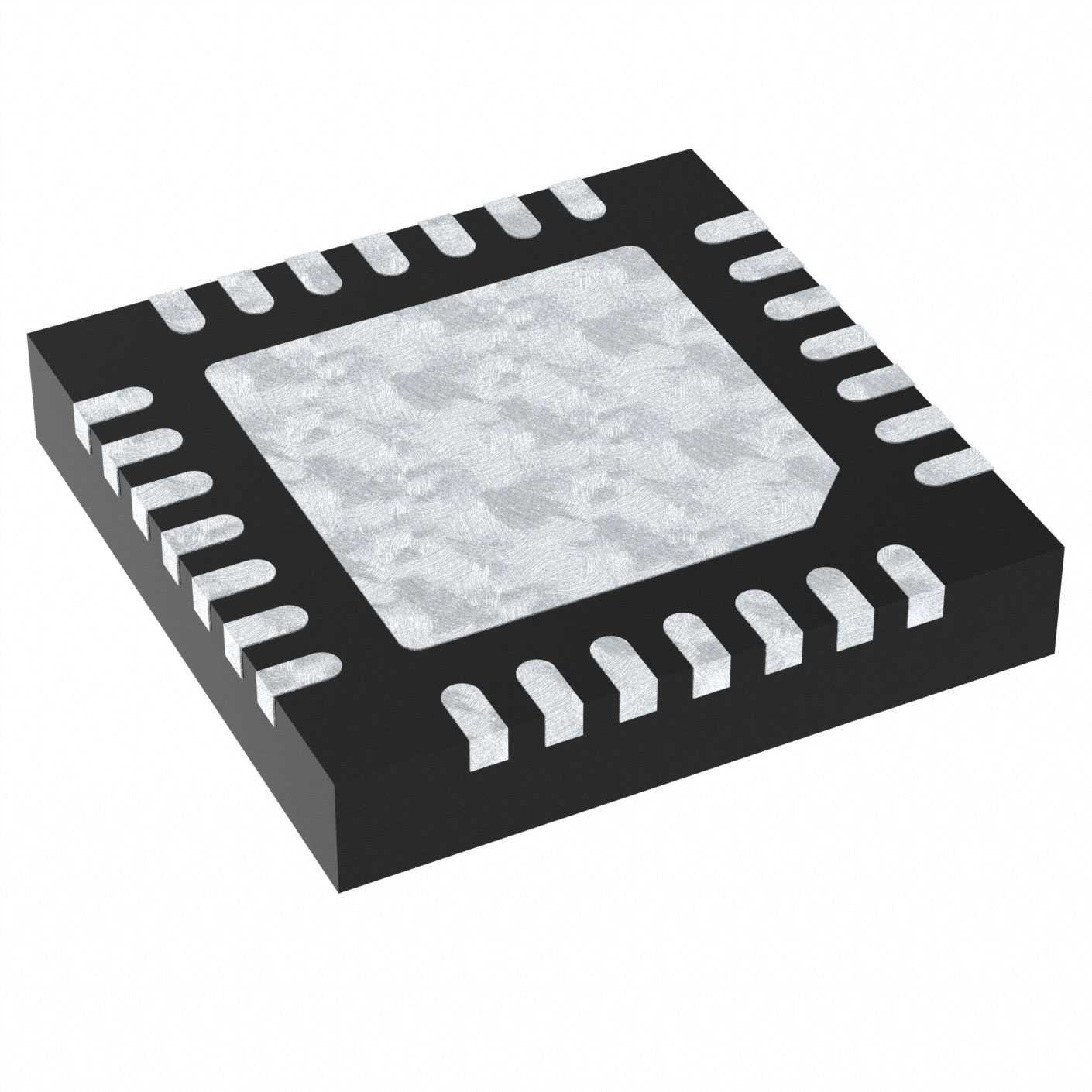

IC ADC/AUDIO 24BIT 48K 28QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AK5703EN
ObsoleteAsahi Kasei Microdevices Corporation
IC ADC/AUDIO 24BIT 48K 28QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AK5703EN |
|---|---|
| Data Interface | I2C, I2S |
| Mounting Type | Surface Mount |
| Number of Channels | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 28-VFQFN Exposed Pad |
| Resolution (Bits) | 24 b |
| Sampling Rate (Per Second) | 48 k |
| Supplier Device Package | 28-QFN (4x4) |
| Type | ADC, Audio |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.4 V, 1.6 V |
| Voltage Supply Source | Analog and Digital |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AK5703 Series
ADC, Audio 24 b 48k I2C, I2S 28-QFN (4x4)
