XB8X-DMUS-001

Active

Digi

RF TXRX MOD ISM<1GHZU.FL SMD

Search across all available documentation for this part.

Active

Digi

RF TXRX MOD ISM<1GHZU.FL SMD

Technical Specifications

Parameters and characteristics for this part

Part	RF Family/Standard	Current - Transmitting	Frequency [Max]	Frequency [Min]	Current - Receiving	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensitivity	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Utilized IC / Part	Power - Output	Antenna Type	Mounting Type	Data Rate
Digi XB8X-DMRS-001	General ISM < 1GHz	55 mA	870 MHz	863 MHz	40 mA	2.4 V	3.6 V	-113 dBm	37-SMD Module	85 °C	-40 °C	SPI UART	ADF7023	13 dBm	Antenna Not Included Castellation	Surface Mount	80 kbps
Digi XB8X-DMUS-001	General ISM < 1GHz	55 mA	870 MHz	863 MHz	40 mA	2.4 V	3.6 V	-113 dBm	37-SMD Module	85 °C	-40 °C	SPI UART	ADF7023	13 dBm	Antenna Not Included U.FL	Surface Mount	80 kbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 42.71

General part information

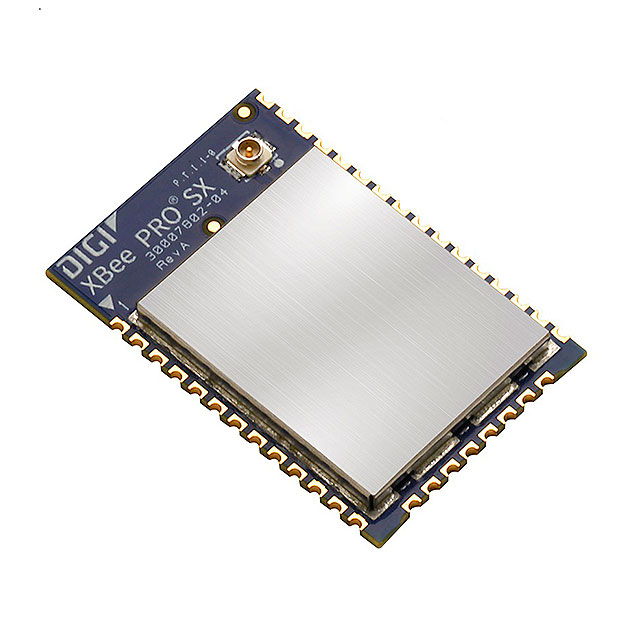

General ISM < 1GHz Transceiver Module 863MHz ~ 870MHz Antenna Not Included, U.FL Surface Mount
