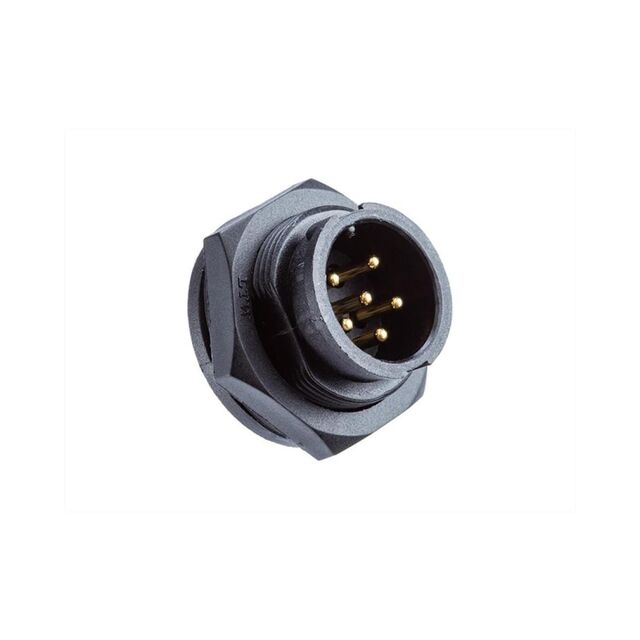

ACB-06PMMS-LC7001

Active

Amphenol LTW

CERES, MIDDLE SIZE, PLASTIC, 10A, 06 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, 2 POINTS LOCK, SOLDER, RECEPTACLE, IP67 ROHS

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, MIDDLE SIZE, PLASTIC, 10A, 06 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, 2 POINTS LOCK, SOLDER, RECEPTACLE, IP67 ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	ACB-06PMMS-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	C
Shielding	Unshielded
Voltage Rating	300 VDC

Part	Color	Orientation	Ingress Protection	Primary Material	Connector Type	Current Rating (Amps)	Mounting Feature	Voltage Rating	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Insert Material	Shielding	Contact Finish - Mating	Contact Material
Amphenol LTW ACB-06PMMS-LC7001	Black	Keyed	IP67 - Dust Tight Waterproof	Plastic	Male Pins Receptacle	10 A	Bulkhead - Front Side Nut	300 VDC	6	Bayonet Lock	-40 °C	105 ░C	C	Polyamide (PA) Nylon Glass Filled	Unshielded	Gold	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder Cup
