A1000.1/8NPT.060

Active

American Electrical Inc.

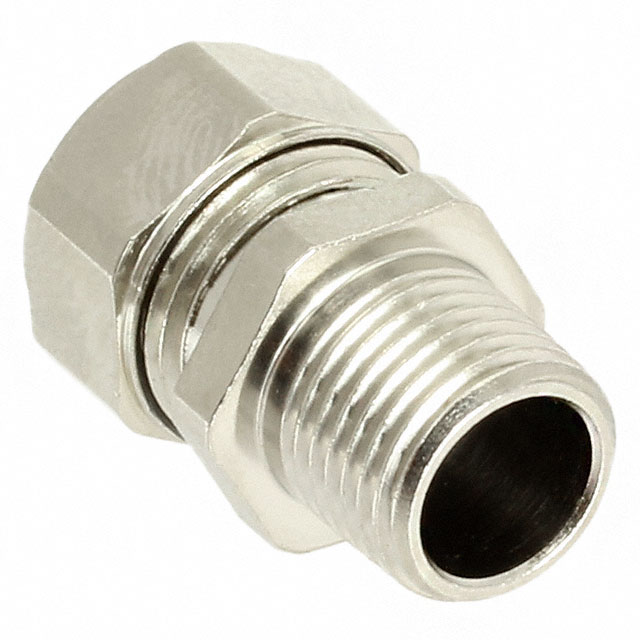

CABLE GLAND 4-6MM 1/8" NPT BRASS

Search across all available documentation for this part.

Active

American Electrical Inc.

CABLE GLAND 4-6MM 1/8" NPT BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	A1000.1/8NPT.060

Color	Silver
Includes	Seal
Ingress Protection	IP68, IP69K
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.236 in
Outside Cable Diameter (Max) [Max] [diameter]	6 mm
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	1/8" NPT
Type	Cable Gland

Part	Thread Size	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Operating Temperature [Max]	Operating Temperature [Min]	Type	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
American Electrical Inc. A1000.1/8NPT.040	1/8" NPT	Silver	3 mm	0.118 in	IP68 IP69K	Seal	4 mm	0.157 "	Brass Nickel Plated	100 °C	-40 °C	Cable Gland	8 mm	0.315 in
American Electrical Inc. A1000.1/8NPT.060	1/8" NPT	Silver			IP68 IP69K	Seal	6 mm	0.236 in	Brass Nickel Plated	100 °C	-40 °C	Cable Gland	8 mm	0.315 in	0.157 in	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated 1/8" NPT Silver
