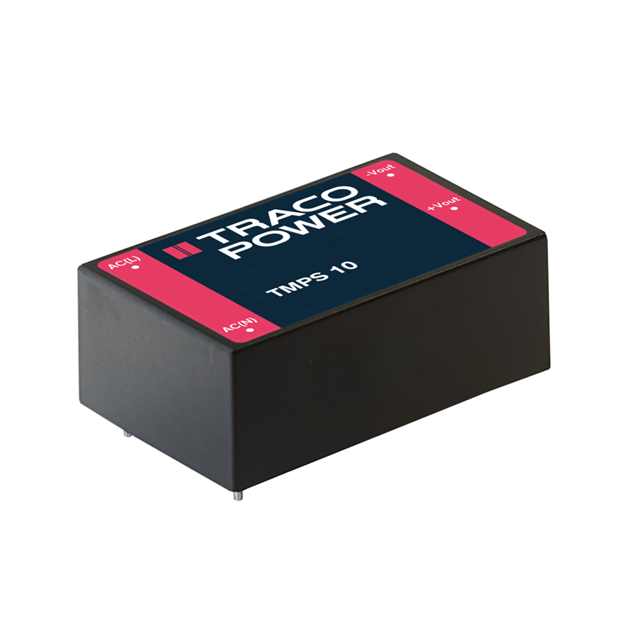

TMPS 10-112
ActiveTraco Power
AC/DC CONVERTER 12V 10W
Deep-Dive with AI
Search across all available documentation for this part.
TMPS 10-112
ActiveTraco Power
AC/DC CONVERTER 12V 10W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMPS 10-112 |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output (Max) [Max] | 830 mA |
| Efficiency | 84 % |
| Features | Universal Input |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 1.5 in |
| Size / Dimension [x] | 38.1 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 15.7 mm |
| Size / Dimension [z] | 0.62 in |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Output 1 | 12 V |
TMPS 10 Series
| Part | Voltage - Output 1 | Type | Power (Watts) | Features | Efficiency | Voltage - Input [Min] | Voltage - Input [Max] | Approval Agency | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Current - Output (Max) [Max] | Load Regulation | Applications | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Traco Power | 24 V | Enclosed | 10 W | Universal Input | 86 % | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | Through Hole | 1.5 in | 25.4 mm | 25.4 mm | 15.7 mm | 38.1 mm | 0.62 in | -25 °C | 70 °C | 4-DIP Module | 410 mA | 1 % | Household Appliances ITE (Commercial) | 1 |
Traco Power | 12 V | Enclosed | 10 W | Universal Input | 84 % | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | Through Hole | 1.5 in | 25.4 mm | 25.4 mm | 15.7 mm | 38.1 mm | 0.62 in | -25 °C | 70 °C | 4-DIP Module | 830 mA | 1 % | Household Appliances ITE (Commercial) | 1 |
Traco Power | 48 V | Enclosed | 10 W | Universal Input | 84 % | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | Through Hole | 1.5 in | 25.4 mm | 25.4 mm | 15.7 mm | 38.1 mm | 0.62 in | -25 °C | 70 °C | 4-DIP Module | 210 mA | 1 % | Household Appliances ITE (Commercial) | 1 |
Traco Power | 5 V | Enclosed | 10 W | Universal Input | 80 % | 85 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | Through Hole | 1.5 in | 25.4 mm | 25.4 mm | 15.7 mm | 38.1 mm | 0.62 in | -25 °C | 70 °C | 4-DIP Module | 2 A | 1 % | Household Appliances ITE (Commercial) | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 27.31 | |
| 10 | $ 25.87 | |||
| 25 | $ 25.32 | |||
| 50 | $ 24.90 | |||
| 100 | $ 24.50 | |||
| 250 | $ 23.97 | |||
| 500 | $ 19.94 | |||
Description
General part information
TMPS 10 Series
Enclosed AC DC Converters 1 Output 12V 830mA 85 ~ 264 VAC, 120 ~ 370 VDC Input
